Ships within 19 days
Model No
View
View
View
View

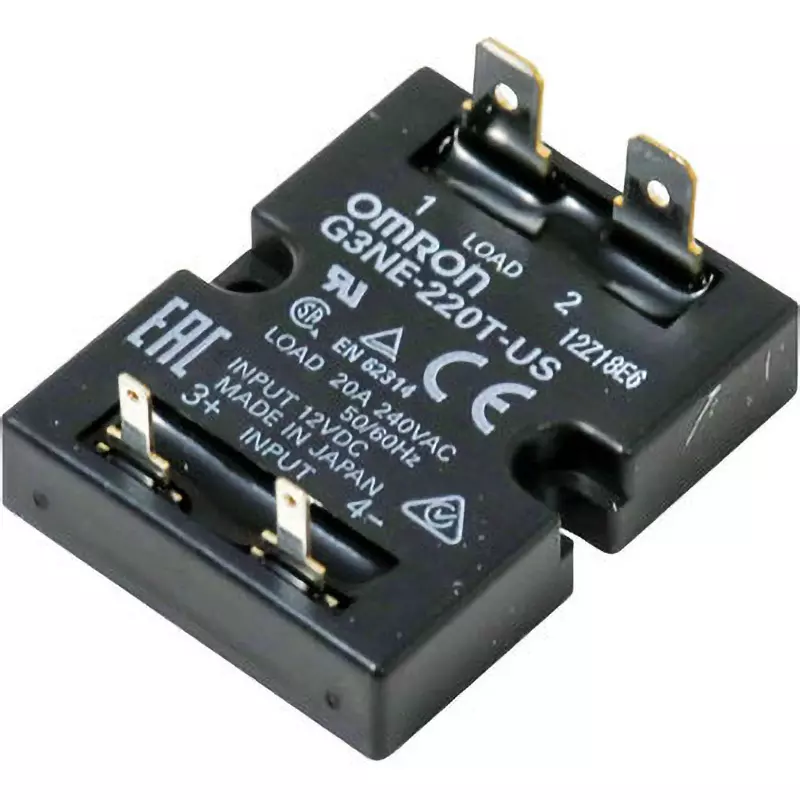

| Model No | G3NE-220T-US-DC12 |
| Load Voltage | AC75~264 |
| Mass (g) | About 37 g |
| Voltage Drop when Output Turned ON | 1.6 V (RMS) or less |
Model No |
G3NE-220T-US-DC12 |
Load Voltage |
AC75~264 |
Mass (g) |
About 37 g |
Voltage Drop when Output Turned ON |
1.6 V (RMS) or less |
Rated Load Voltage (V) |
AC100~240 |
Operation Ambient Temperature |
-30°C to +80°C (With No Icing or Condensation) |
Insulation Type |
Photo Triac |
Operation Indicator Lamp |
None |
Insulation Resistance |
100 mΩ or more (with DC 500 V Mega) |
Equipped with/without Zero Cross Function |
Included |
Rated Voltage (V) |
DC12 |
Ambient Humidity to Use |
45~85%RH |
Suitable Load of Output |
20 A, AC100 V~240 V |
Monotaro ID |
46627235 |
Type of Product |
Solid State Relay |
Operating Temperature Range |
-30 to 80°C (No Condensation or Freezing) |
Series |
G3NE Series |
Storage Temperature Range |
-30 to +100°C (With No Icing or Condensation) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Terminal Structure |
Tab Terminal (Input #110, Output #250) |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Rated Input Voltage (V) |
DC12 |
Storage Temperature |
-30 to +100°C (No Condensation or Freezing) |
