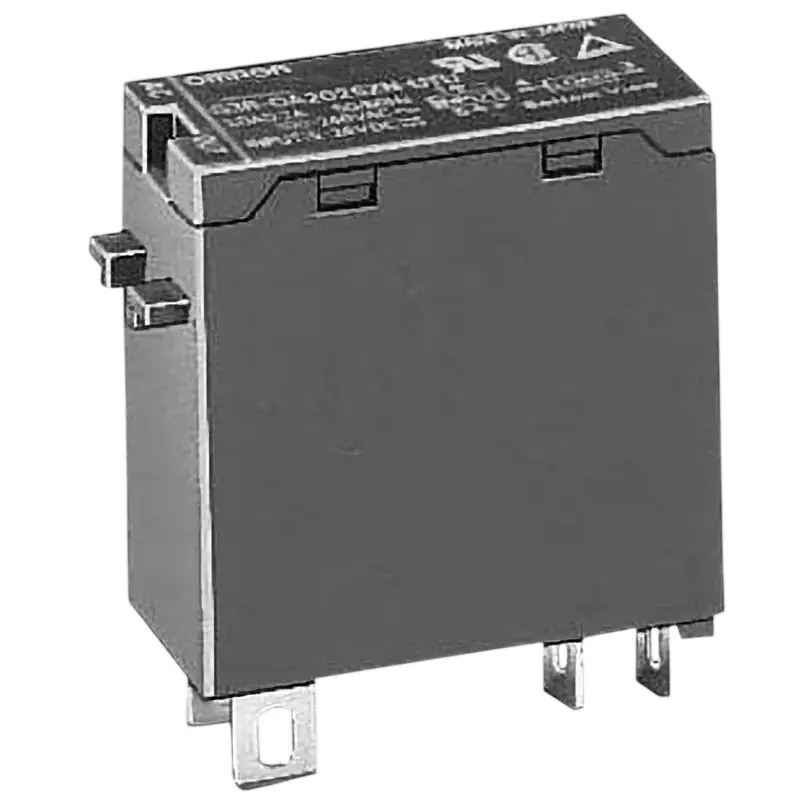

| Features | Solid-state relay |
| Model No | G3R-ODX02SN-UTU |
| Load Voltage | DC4-60 |
| Load Current (Amp) | 0.01 to 2 (Minimum current value is for temperatures above 10°C) |
Features |
Solid-state relay |
Model No |
G3R-ODX02SN-UTU |
Load Voltage |
DC4-60 |
Load Current (Amp) |
0.01 to 2 (Minimum current value is for temperatures above 10°C) |
Mass (g) |
about 18 |
Withstand voltage (V / min) |
Between input and output: AC4000 |
Voltage Drop when Output Turned ON |
1.6 V or less |
Operating Time (ms) |
1 or less |
Operating Voltage Range (V) |
DC4-32 |
Vibration Resistance |
10 to 55 to 10Hz Single amplitude 0.75 mm (Double amplitude 1.5 mm) |
Surge-on current capability (A) |
8 (10ms) |
Rated Voltage (V) |
Input: DC 5-24V / Output: DC 5-48V |
Leakage Current (mA) |
1 or less |
Monotaro ID |
39066632 |
Type of Product |
Solid State Relay |
Insulation |
Photocoupler |
Part No |
G3R-ODX02SN-UTU DC5-24 |
Operating Temperature Range |
-30 to 80 degrees Celsius (no condensation or freezing) |
Input current (mA) |
8 or less |
Output Current (mA) |
2000 |
Module |
Output module |
Standard |
Obtained UL, CSA, EN (TUV certification) standards |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Response Frequency |
100 |
Indicator Light |
can be |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Storage Temperature |
-30 to 100°C (No condensation or freezing) |
Vibration |
10 to 55 to 10Hz, single amplitude 0.75 mm (double amplitude 1.5 mm) |
Operation Ambient Temperature (°C) |
-30 to +80 degrees Celsius (provided there is no freezing or condensation) |
Operating voltage (V) |
DC 4 or less |
Insulation Resistance (MOhm) |
Input/Output interval: 100 or more |
Ib Order code |
39066632 |
Ambient Humidity (% RH) |
45-85 |
Impact |
1000 |
Recorder Voltage |
DC 1 V or higher |
Recovery time |
2 or less |
Contents |
1 piece |
Procurement Type |
Direct Import from Japan |
