| Load Voltage | 48 to 530 V AC |
| Type of Product | Solid State Relay |
| No. of Pole | 1 |
| Height | 33 mm |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Load Voltage |
48 to 530 V AC |
Type of Product |
Solid State Relay |
No. of Pole |
1 |
Height |
33 mm |
Depth |
58.4 mm |
Operating Temperature Range |
-40 to +80°C |
Mounting Type |
Panel Mount |
Series |
CW |
Maximum Load Current |
50 A RMS |
Country of Origin |
Mexico |
Capacitance |
8 pF |
Special Features |
AC or DC control and Universal AC/DC control, Epoxy Free Design |
Length |
45.7 mm |
Leakage Current |
1 mA |
Maximum Operating Temperature |
+80°C |
Terminal Type |
Screw |
Minimum Operating Temperature |
-40°C |

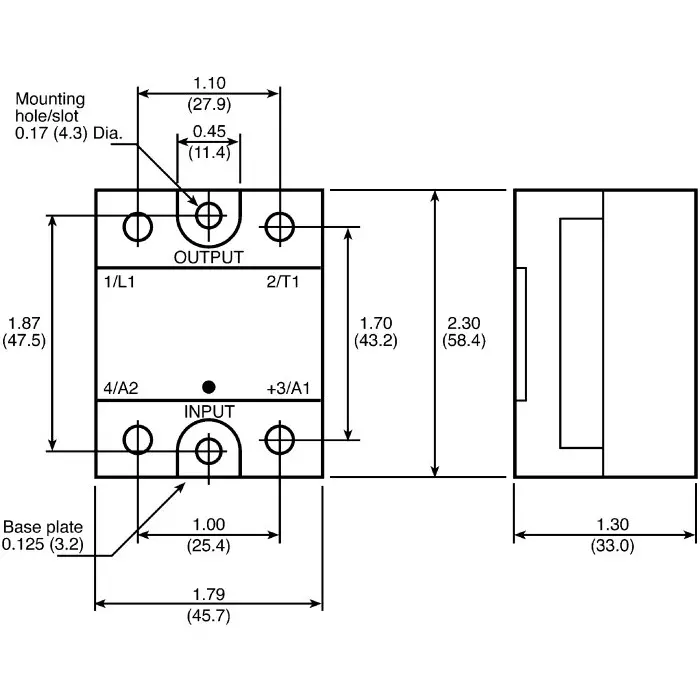

Dimension |
45.7x58.4x33 mm |
Relay Type |
Solid State Relay |
Output Device |
SCR |
Switch Type |
Instantaneous |
Name of Manufacturer/Packer/Importer |
SENSATA/CRYDOM |
Maximum Control Voltage |
32 V |
Minimum Load Current |
0.15 A |
Minimum Control Voltage |
4 V |
Maximum Turn On Time |
1/2 cycle |
Control Voltage Range |
4 to 32 V DC |
Maximum Load Voltage |
660 V AC |
Minimum Load Voltage |
48 V AC |
Product Code |
4914931 |
Pack of |
1 Pc |
Manufacturer Part Number |
CWD4850-10 |
Standards Met |
CE, CSA, cURus |
