| Load Voltage | 3 to 60 V DC |

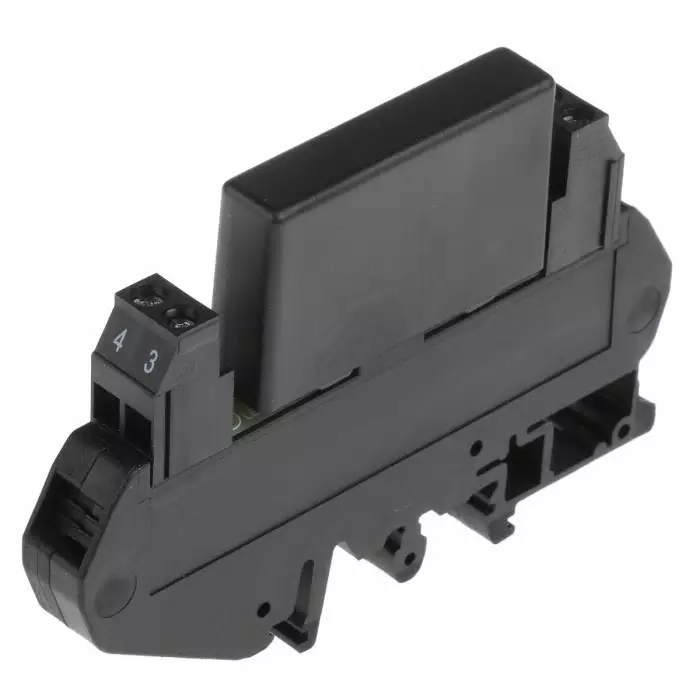

| Type of Product | Solid State Interface Relay |
| Height | 62.2 mm |
| Depth | 10 mm |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Load Voltage |
3 to 60 V DC |
Type of Product |
Solid State Interface Relay |
Height |
62.2 mm |
Depth |
10 mm |
Operating Temperature Range |
-40 to +80°C |
Mounting Type |
DIN Rail |
Series |
DRA1-MP |
Maximum Load Current |
3 A |
Country of Origin |
Mexico |
Length |
89.6 mm |
Maximum Operating Temperature |
+80°C |
Contact Configuration |
SPST |
Minimum Operating Temperature |
-40°C |
Dimension |
89.6x10x62.2 mm |
Switch Type |
DC |
Name of Manufacturer/Packer/Importer |
SENSATA/CRYDOM |
Maximum Control Voltage |
32 V DC |
Minimum Load Current |
0.02 A |
Minimum Control Voltage |
3 V DC |
Maximum Turn On Time |
0.1 ms |
Control Voltage Range |
3 to 32 V DC |
Maximum Load Voltage |
60 V |
Minimum Load Voltage |
3 V DC |
Product Code |
7018623 |
Pack of |
1 Pc |
Manufacturer Part Number |
DRA1-MPDCD3 |
