| Load Voltage | 24 to 280 VRMS |
| Type of Product | Solid State Relay |
| Height | 29.9 mm |
| Depth | 11.9 mm |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Load Voltage |
24 to 280 VRMS |
Type of Product |
Solid State Relay |
Height |
29.9 mm |
Depth |
11.9 mm |
Operating Temperature Range |
-30 to +80°C |
Mounting Type |
PCB Mount |
Series |
D2W |
Maximum Load Current |
3 A |
Country of Origin |
Mexico |
Capacitance |
10 pF |
Length |
43.2 mm |
Leakage Current |
8 mA RMS |
Maximum Operating Temperature |
+80°C |
Contact Configuration |
SPST |
Terminal Type |
Through Hole |
Minimum Operating Temperature |
-30°C |

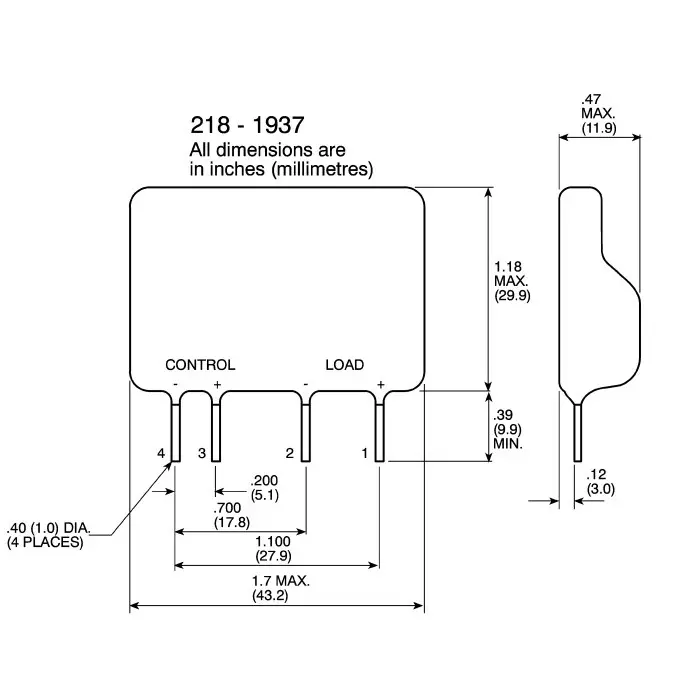

Dimension |
43.2x11.9x29.9 mm |
Output Device |
Triac |
Switch Type |
Zero Cross |
Name of Manufacturer/Packer/Importer |
SENSATA/CRYDOM |
Maximum Control Voltage |
32 V DC |
Minimum Load Current |
0.06 A RMS |
Minimum Control Voltage |
3 V DC |
Maximum Turn On Time |
1/2 cycle |
Control Voltage Range |
3 to 32 V DC |
Maximum Load Voltage |
280 V RMS |
Minimum Load Voltage |
24 V RMS |
Product Code |
7385569 |
Pack of |
1 Pc |
Package Type |
SIP |
Manufacturer Part Number |
D2W203F |
Standards Met |
CE |
