| Load Voltage | 1 to 60 V DC |

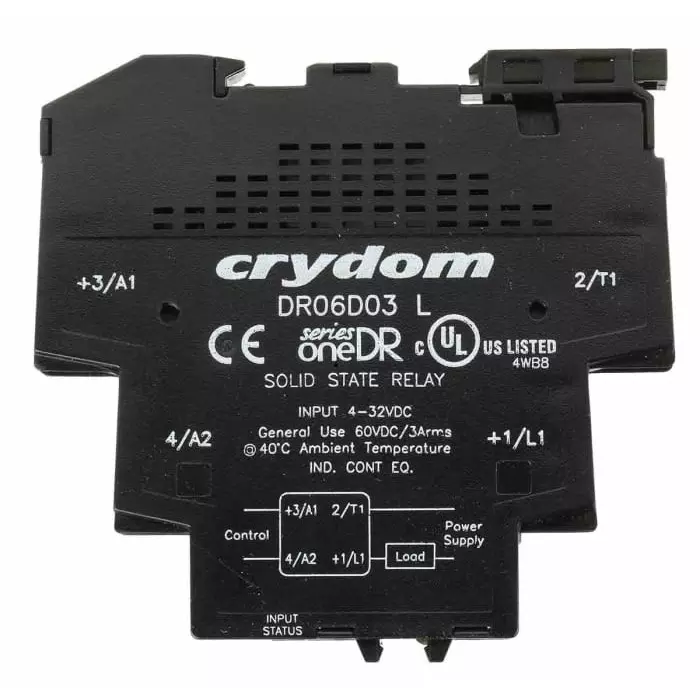

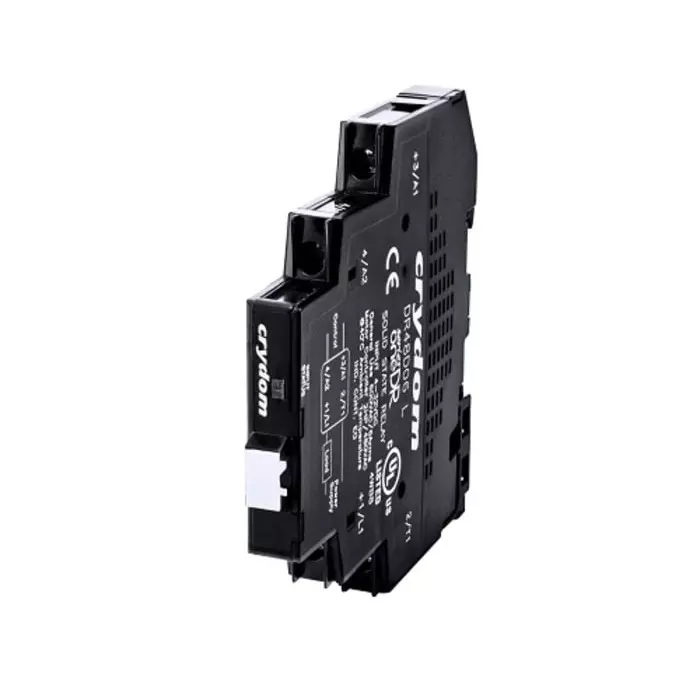

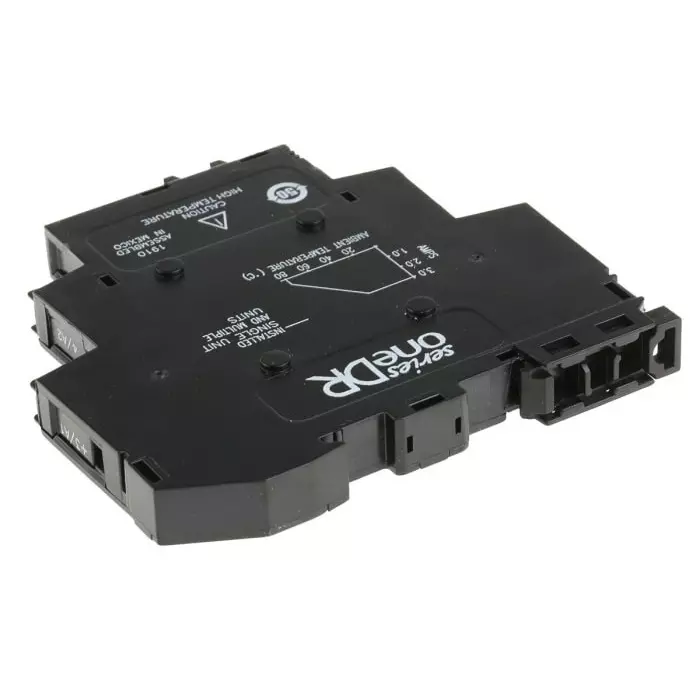

| Type of Product | Solid State Interface Relay |
| Height | 73.5 mm |
| Depth | 11 mm |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Load Voltage |
1 to 60 V DC |
Type of Product |
Solid State Interface Relay |
Height |
73.5 mm |
Depth |
11 mm |
Operating Temperature Range |
-30 to +80°C |
Mounting Type |
DIN Rail |
Maximum Load Current |
3 A |
Country of Origin |
Mexico |
Length |
87.6 mm |
Leakage Current |
0.1 mA |
Terminal Type |
Screw |
Dimension |
87.6x11x83.7 mm |
Switch Type |
Zero Cross |
Name of Manufacturer/Packer/Importer |
SENSATA/CRYDOM |
Maximum Control Voltage |
32 V DC |
Minimum Load Current |
2.5 mA |
Minimum Control Voltage |
4 V DC |
Maximum Turn On Time |
600 μs |
Control Voltage Range |
4 to 32 V DC |
Maximum Load Voltage |
60 V DC |
Minimum Load Voltage |
1 V DC |
Product Code |
7761749 |
Pack of |
1 Pc |
Manufacturer Part Number |
DR06D03 |
