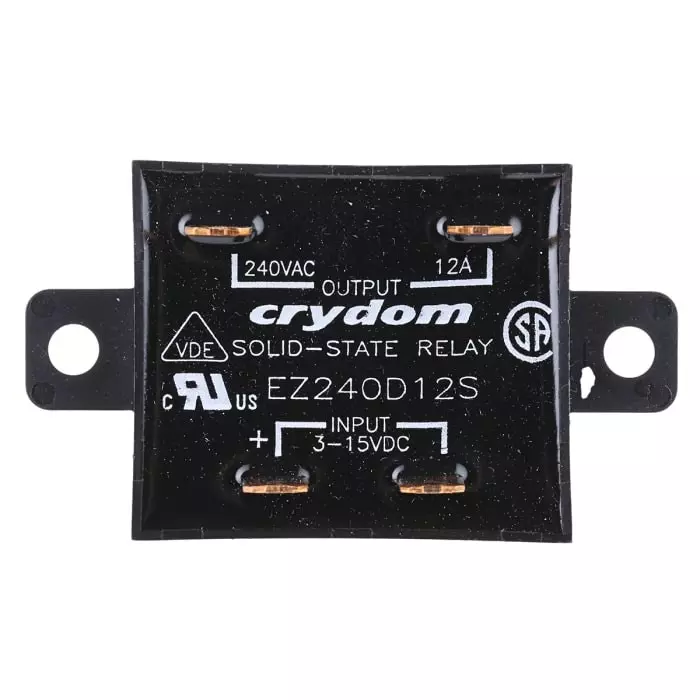

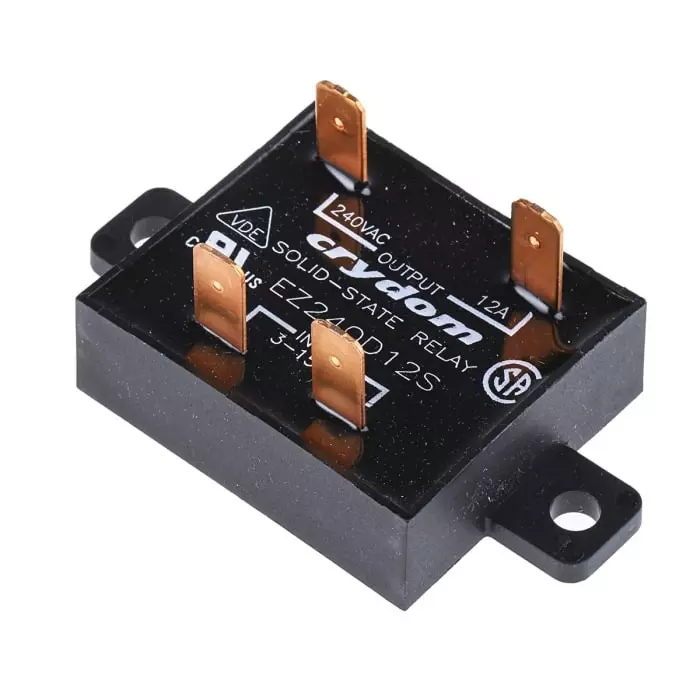

SENSATA/CRYDOM Solid State Relay EZ Series 12 A RMS Load Panel Mount 280 V 15 DC Control, EZ240D12S
ez240d12s-sensata-crydom-sensata-crydom-ez-series-solid-state-relay-12-a-rms-load-panel-mount-280-v-load-15-v-dc-control-394-535-rs
ez240d12s-sensata-crydom-sensata-crydom-ez-series-solid-state-relay-12-a-rms-load-panel-mount-280-v-load-15-v-dc-control-394-535-rs
ez240d12s-sensata-crydom-sensata-crydom-ez-series-solid-state-relay-12-a-rms-load-panel-mount-280-v-load-15-v-dc-control-394-535-rs
ez240d12s-sensata-crydom-sensata-crydom-ez-series-solid-state-relay-12-a-rms-load-panel-mount-280-v-load-15-v-dc-control-394-535-rs

SENSATA/CRYDOM Solid State Relay EZ Series 12 A RMS Load Panel Mount 280 V 15 DC Control, EZ240D12S

Visit the SENSATA/CRYDOM Store
EMI starts at ₹1363/month. No Cost EMI available.
Available offers
Get Flat 10% off on your First Orders above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 3% off on First Order above ₹3,000

View

Features
Load Voltage 24 to 280 V AC
Type of Product Solid State Relay
Height 13.9 mm
Depth 38.1 mm
More SENSATA/CRYDOM Solid State Relay products More Solid State Relay products
100% Original Products
100% Original Products
Secure Payments
Secure Payments
100% Buyer Protection
100% Buyer Protection
Top Brands
Top Brands

Load Voltage

24 to 280 V AC

Type of Product

Solid State Relay

Height

13.9 mm

Depth

38.1 mm

Operating Temperature Range

-40 to +80°C

Mounting Type

Panel Mount

Series

EZ

Maximum Load Current

12 A RMS

Country of Origin

Mexico

Length

43.9 mm

Maximum Operating Temperature

+80°C

Minimum Operating Temperature

-40°C

Dimension

43.9x38.1x13.9 mm

Output Device

SCR

Switch Type

Zero Cross

Name of Manufacturer/Packer/Importer

SENSATA/CRYDOM

Maximum Control Voltage

15 V DC

Minimum Load Current

150 mA

Minimum Control Voltage

3 V DC

Control Voltage Range

4 to 15 V DC

Maximum Load Voltage

280 V

Product Code

394535

Pack of

1 Pc

Manufacturer Part Number

EZ240D12S

Distrelec Product Id

30399273
