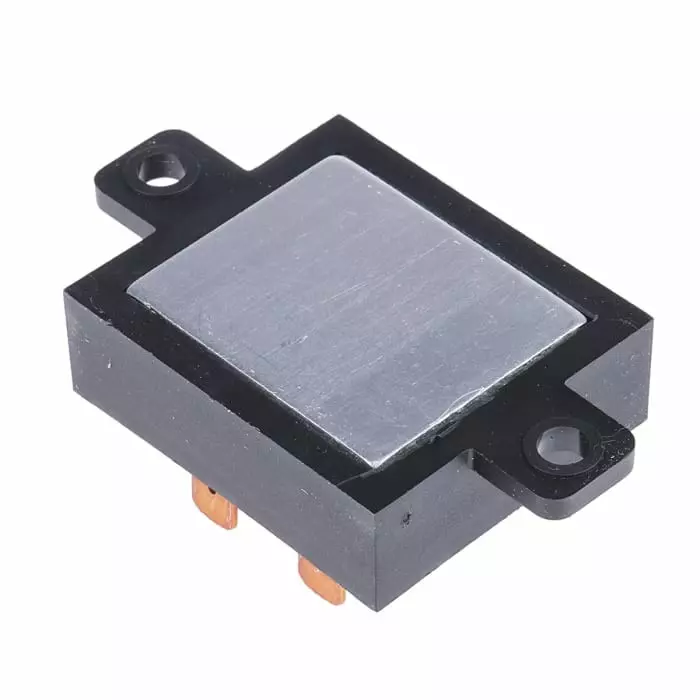

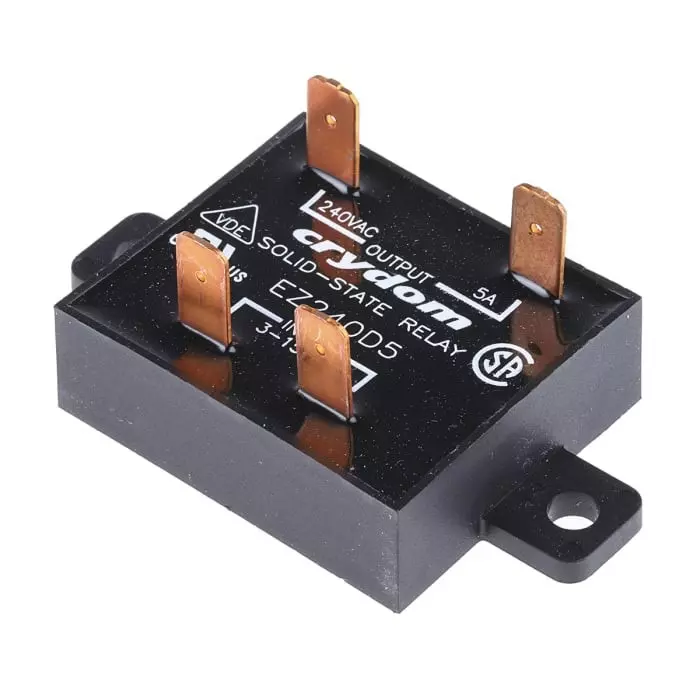

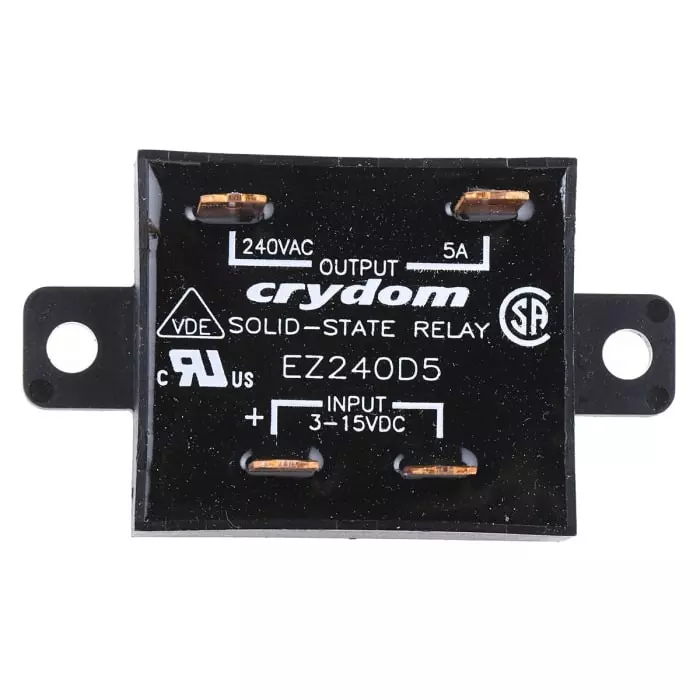

SENSATA/CRYDOM Solid State Relay EZ Series 5 A RMS Load Panel Mount 280 V 15 DC Control, EZ240D5
SENSATA/CRYDOM Solid State Relay EZ Series 5 A RMS Load Panel Mount 280 V 15 DC Control, EZ240D5
SENSATA/CRYDOM Solid State Relay EZ Series 5 A RMS Load Panel Mount 280 V 15 DC Control, EZ240D5
SENSATA/CRYDOM Solid State Relay EZ Series 5 A RMS Load Panel Mount 280 V 15 DC Control, EZ240D5
SENSATA/CRYDOM Solid State Relay EZ Series 5 A RMS Load Panel Mount 280 V 15 DC Control, EZ240D5

SENSATA/CRYDOM Solid State Relay EZ Series 5 A RMS Load Panel Mount 280 V 15 DC Control, EZ240D5

Visit the SENSATA/CRYDOM Store
EMI starts at ₹304/month. No Cost EMI available.
Available offers
Flat ₹200 off on Order above ₹7,000 | Valid for NEW Business Users

View

Flat ₹100 off on Order above ₹5000 | Valid for NEW Business Users

View

Flat ₹500 off on Order above ₹15000 | Valid for NEW Business Users

View

Flat ₹400 off on Order above ₹10,000 | Valid for REPEAT Business User

View

Features
Load Voltage 24 to 280 V AC
Type of Product Solid State Relay
Height 13.9 mm
Depth 38.1 mm
More SENSATA/CRYDOM Solid State Relay products More Solid State Relay products
warranty Warranty as per brand
original products 100% Original Products
secure payments Secure payments
buyer protection 100% Buyer protection
top brands Top Brands

Load Voltage

24 to 280 V AC

Type of Product

Solid State Relay

Height

13.9 mm

Depth

38.1 mm

Operating Temperature Range

-40 to +80°C

Mounting Type

Panel Mount

Series

EZ

Maximum Load Current

5 A RMS

Country of Origin

Mexico

Length

43.9 mm

Maximum Operating Temperature

+80°C

Minimum Operating Temperature

-40°C

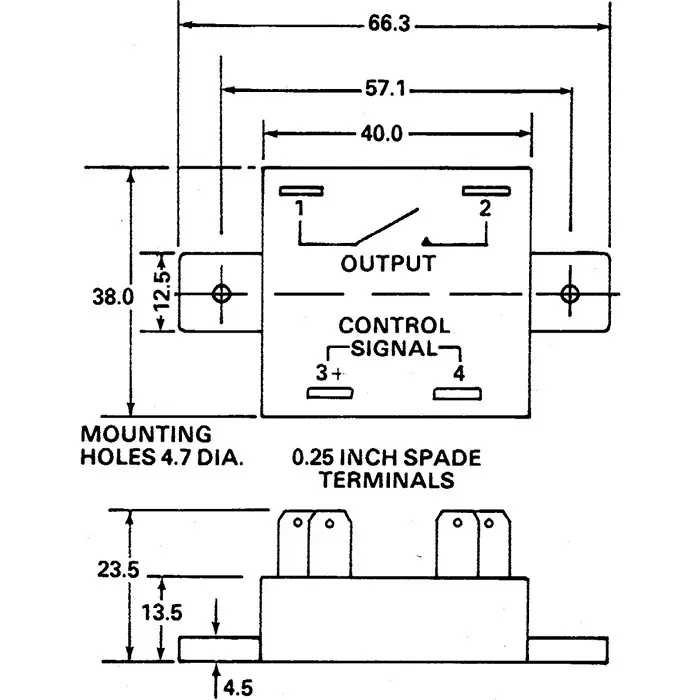

Dimension

43.9x38.1x13.9 mm

Output Device

SCR

Switch Type

Zero Cross

Name of Manufacturer/Packer/Importer

SENSATA/CRYDOM

Maximum Control Voltage

15 V DC

Minimum Load Current

150 mA

Minimum Control Voltage

3 V DC

Control Voltage Range

4 to 15 V DC

Maximum Load Voltage

280 V

Product Code

346384

Pack of

1 Pc

Manufacturer Part Number

EZ240D5
