SENSATA/CRYDOM Solid State Relay 53TP Series 25 A RMS Load Panel Mount 530 V 280 Control, A53TP25D

Share

Ships within 15 days

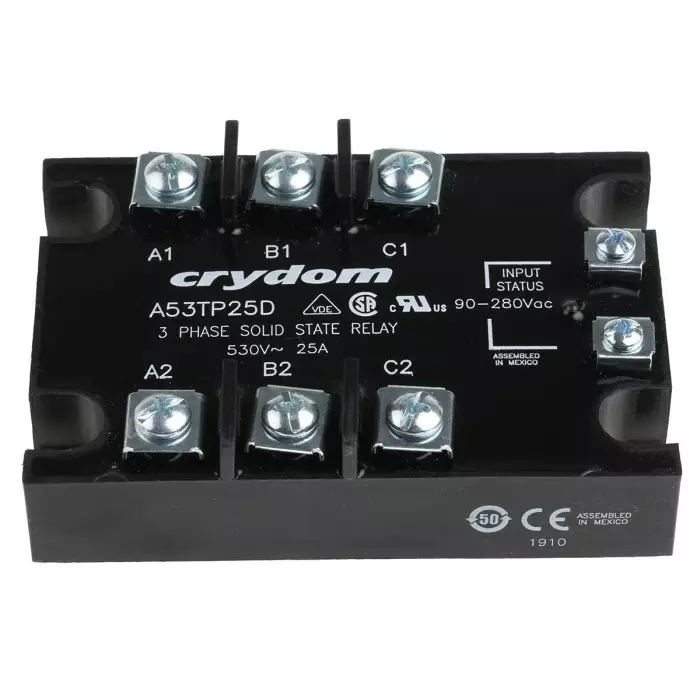

SENSATA/CRYDOM Solid State Relay 53TP Series 25 A RMS Load Panel Mount 530 V 280 Control, A53TP25D

a53tp25d-sensata-crydom-sensata-crydom-53tp-series-solid-state-relay-25-a-rms-load-panel-mount-530-v-rms-load-280-v-rms-control-218-1915-rs

a53tp25d-sensata-crydom-sensata-crydom-53tp-series-solid-state-relay-25-a-rms-load-panel-mount-530-v-rms-load-280-v-rms-control-218-1915-rs

a53tp25d-sensata-crydom-sensata-crydom-53tp-series-solid-state-relay-25-a-rms-load-panel-mount-530-v-rms-load-280-v-rms-control-218-1915-rs

a53tp25d-sensata-crydom-sensata-crydom-53tp-series-solid-state-relay-25-a-rms-load-panel-mount-530-v-rms-load-280-v-rms-control-218-1915-rs

a53tp25d-sensata-crydom-sensata-crydom-53tp-series-solid-state-relay-25-a-rms-load-panel-mount-530-v-rms-load-280-v-rms-control-218-1915-rs

a53tp25d-sensata-crydom-sensata-crydom-53tp-series-solid-state-relay-25-a-rms-load-panel-mount-530-v-rms-load-280-v-rms-control-218-1915-rs

a53tp25d-sensata-crydom-sensata-crydom-53tp-series-solid-state-relay-25-a-rms-load-panel-mount-530-v-rms-load-280-v-rms-control-218-1915-rs

a53tp25d-sensata-crydom-sensata-crydom-53tp-series-solid-state-relay-25-a-rms-load-panel-mount-530-v-rms-load-280-v-rms-control-218-1915-rs

SENSATA/CRYDOM Solid State Relay 53TP Series 25 A RMS Load Panel Mount 530 V 280 Control, A53TP25D

Visit the SENSATA/CRYDOM Store

EMI starts at ₹2831/month. No Cost EMI available.

Available offers

Flat ₹300 off on Order above ₹7,000 | Valid for NEW Business Users

View

Flat ₹200 off on Order above ₹5000 | Valid for NEW Business Users

View

Flat ₹400 off on Order above ₹10,000 | Valid for REPEAT Business User

View

Flat ₹800 off on Order above ₹20,000 | Valid for REPEAT Business User

View

Features

Load Voltage	48 to 530 V AC
Type of Product	Solid State Relay
Height	30 mm
Depth	73.4 mm

More SENSATA/CRYDOM Solid State Relay products More Solid State Relay products

Warranty as per brand

100% Original Products

Secure payments

100% Buyer protection

Top Brands

specifications

Load Voltage	48 to 530 V AC
Type of Product	Solid State Relay
Height	30 mm
Depth	73.4 mm
Operating Temperature Range	-40 to +80°C
Mounting Type	Panel Mount
Series	53TP
Maximum Load Current	25 A RMS
Country of Origin	Mexico
Capacitance	8 pF
Length	103.8 mm
Leakage Current	10 mA RMS
Maximum Operating Temperature	+80°C
Terminal Type	Screw
Minimum Operating Temperature	-40°C

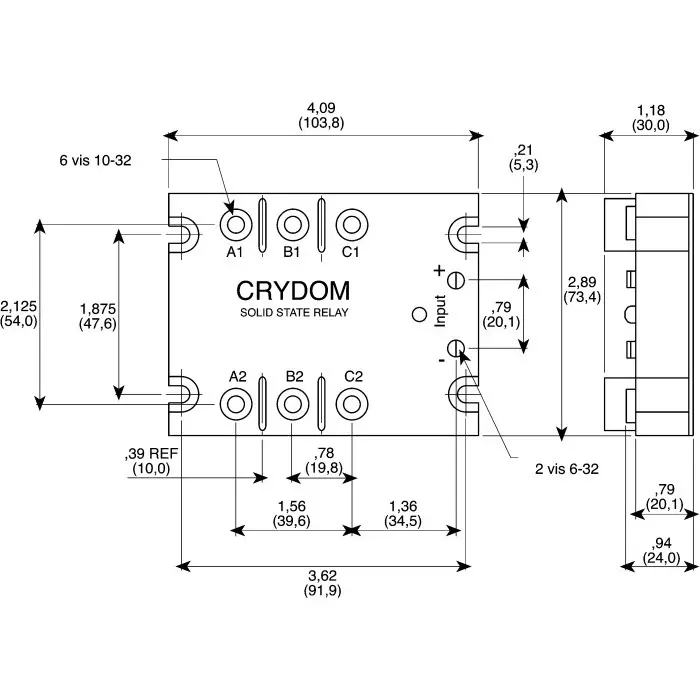

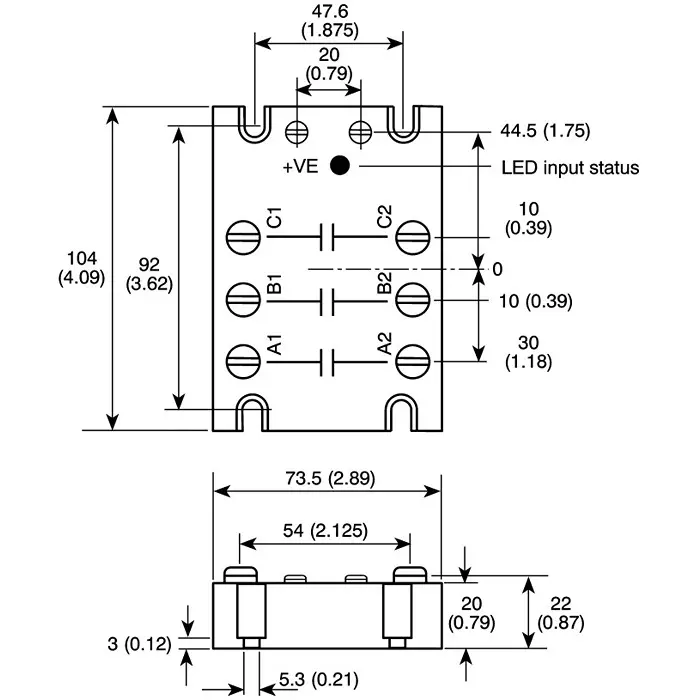

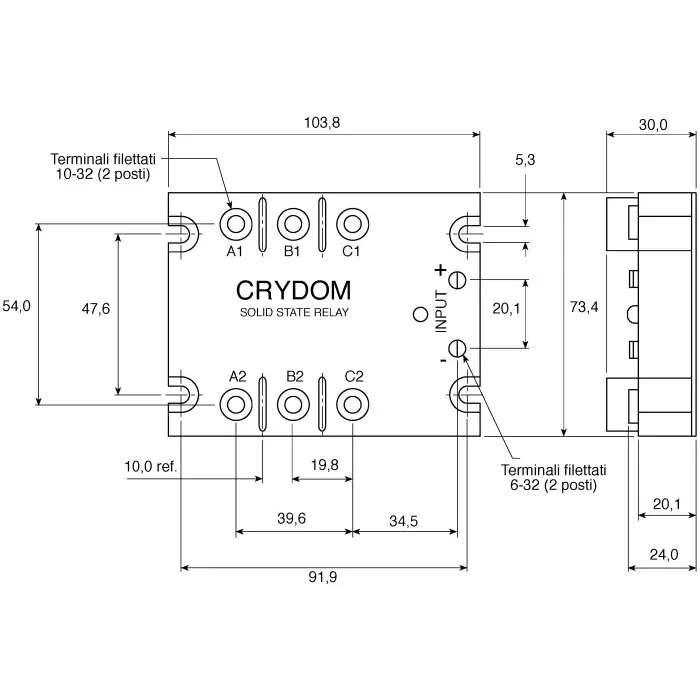

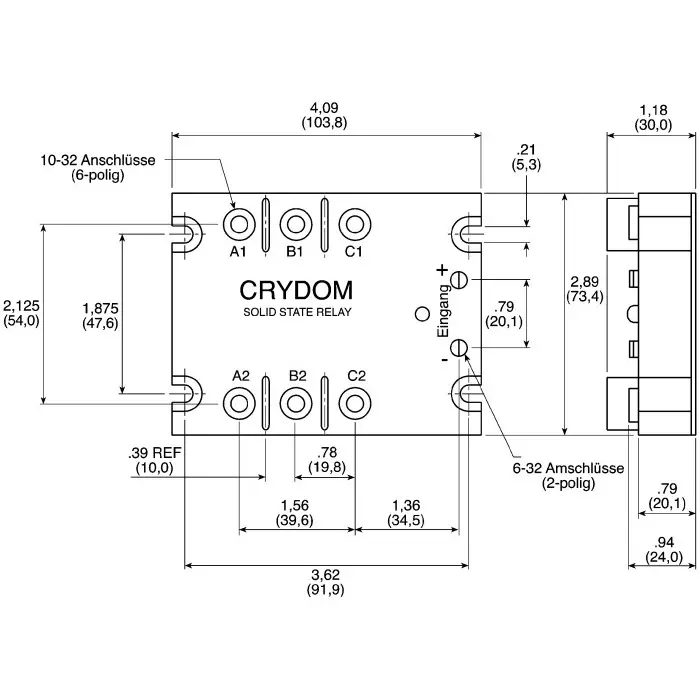

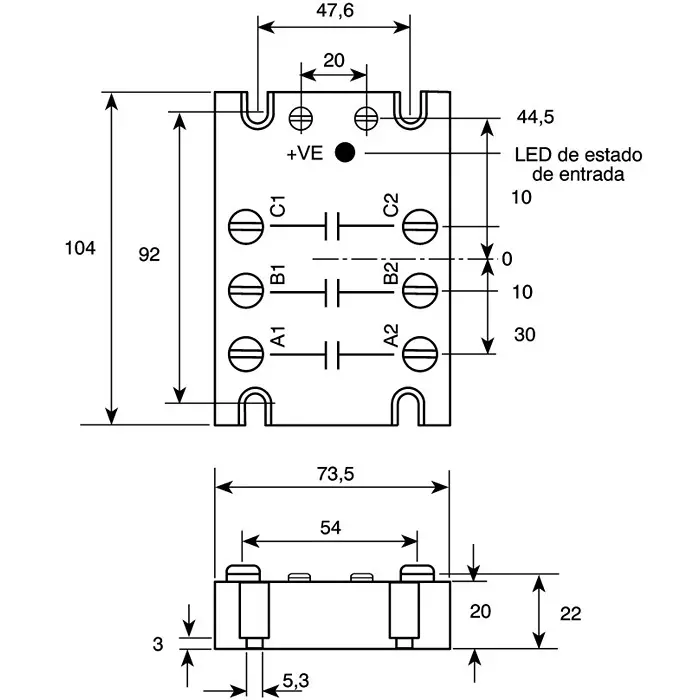

Dimension	103.8x73.4x30 mm
Relay Type	Solid State Relay
Output Device	SCR
Switch Type	Zero Cross
Name of Manufacturer/Packer/Importer	SENSATA/CRYDOM
Maximum Control Voltage	280 V RMS
Minimum Load Current	0.05 A
Minimum Control Voltage	90 V AC
Maximum Turn On Time	1/2 cycle
Control Voltage Range	90 to 280 V AC
Maximum Load Voltage	530 V RMS
Minimum Load Voltage	48 V AC
Product Code	2181915
Pack of	1 Pc
Manufacturer Part Number	A53TP25D
Standards Met	CE
