| Load Voltage | 12 to 280 VRMS |
| Type of Product | Solid State Relay |
| Height | 25.4 mm |
| Depth | 7.6 mm |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Load Voltage |
12 to 280 VRMS |
Type of Product |
Solid State Relay |
Height |
25.4 mm |
Depth |
7.6 mm |
Operating Temperature Range |
-30 to +80°C |
Mounting Type |
PCB Mount |
Series |
CX |
Maximum Load Current |
5 A |
Country of Origin |
Mexico |
Capacitance |
10 pF |
Length |
43.1 mm |
Leakage Current |
0.1 mA RMS |
Maximum Operating Temperature |
+80°C |
Contact Configuration |
SPST |
Terminal Type |
Through Hole |
Minimum Operating Temperature |
-30°C |
Dimension |
43.1x7.6x25.4 mm |
Output Device |
SCR |
Switch Type |
Instantaneous |
Name of Manufacturer/Packer/Importer |
SENSATA/CRYDOM |
Maximum Control Voltage |
15 V DC |
Minimum Load Current |
5 A RMS |
Minimum Control Voltage |
4 V DC |
Maximum Turn On Time |
1/2 cycle |
Control Voltage Range |
4 to 15 V DC |
Maximum Load Voltage |
280 V AC |
Minimum Load Voltage |
12 V AC |
Product Code |
7385531 |
Pack of |
1 Pc |
Package Type |
SIP |

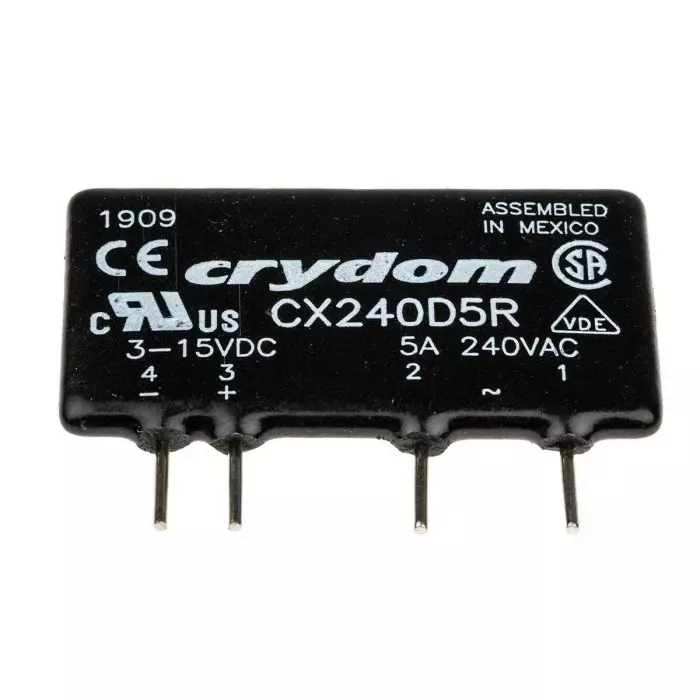

Manufacturer Part Number |
CX240D5R |
Standards Met |
CE, RoHS Compliant |
