| Load Voltage | 0 to 400 V DC |
| Type of Product | Solid State Relay |
| Height | 23 mm |
| Depth | 58.4 mm |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Load Voltage |
0 to 400 V DC |
Type of Product |
Solid State Relay |
Height |
23 mm |
Depth |
58.4 mm |
Operating Temperature Range |
-20 to +80°C |
Mounting Type |
Surface Mount |
Series |
1-DCL |
Maximum Load Current |
7 A |
Country of Origin |
Mexico |
Capacitance |
8 pF |
Length |
45.7 mm |
Leakage Current |
0.1 mA RMS |
Maximum Operating Temperature |
+80°C |
Terminal Type |
Screw |
Minimum Operating Temperature |
-20°C |

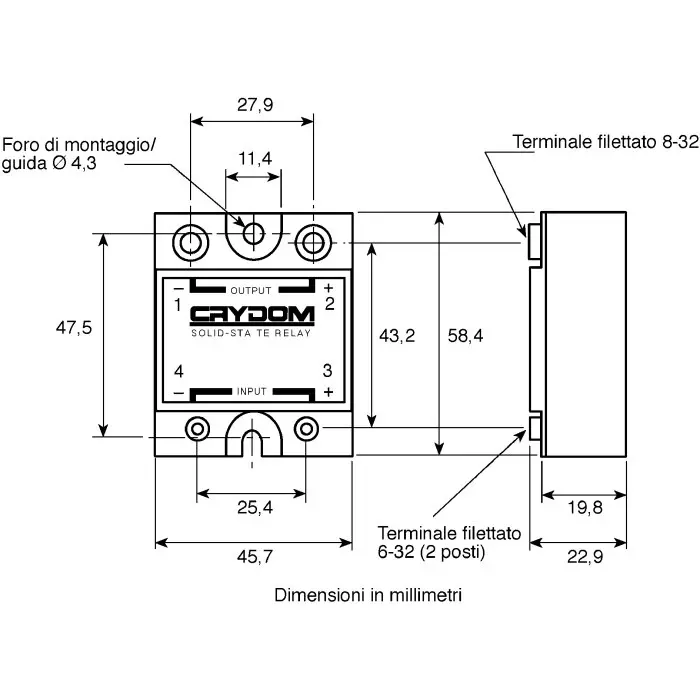

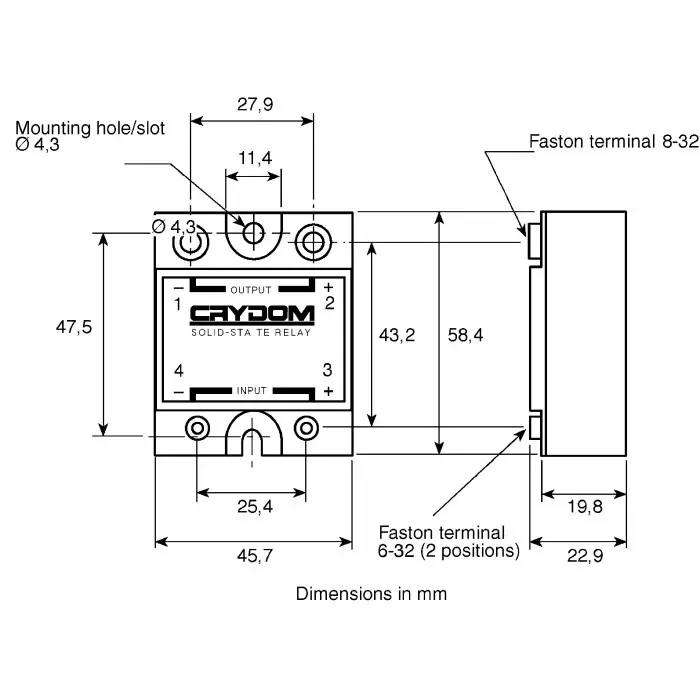

Dimension |
45.7x58.4x23 mm |
Output Device |
MOSFET |
Name of Manufacturer/Packer/Importer |
SENSATA/CRYDOM |
Maximum Control Voltage |
32 V |
Minimum Load Current |
1 mA |
Minimum Control Voltage |
3.5 V DC |
Maximum Turn On Time |
0.1 ms |
Control Voltage Range |
3.5 to 32 V DC |
Maximum Load Voltage |
400 V |
Product Code |
2912618 |
Pack of |
1 Pc |
Manufacturer Part Number |
D4D07 |
Standards Met |
UL |
