| Load Voltage | 0 to 1000 V DC |
| Type of Product | Solid State Relay |
| Height | 22.9 mm |
| Depth | 45.7 mm |
Load Voltage |
0 to 1000 V DC |
Type of Product |
Solid State Relay |
Height |
22.9 mm |
Depth |
45.7 mm |
Operating Temperature Range |
-30 to +80°C |
Mounting Type |
Surface Mount |
Series |
SSC Series |
Maximum Load Current |
25 A |
Country of Origin |
Mexico |
Capacitance |
8 pF |
Length |
58.4 mm |
Leakage Current |
0.3 mA |
Maximum Operating Temperature |
+80°C |
Terminal Type |
Screw |
Minimum Operating Temperature |
-30°C |

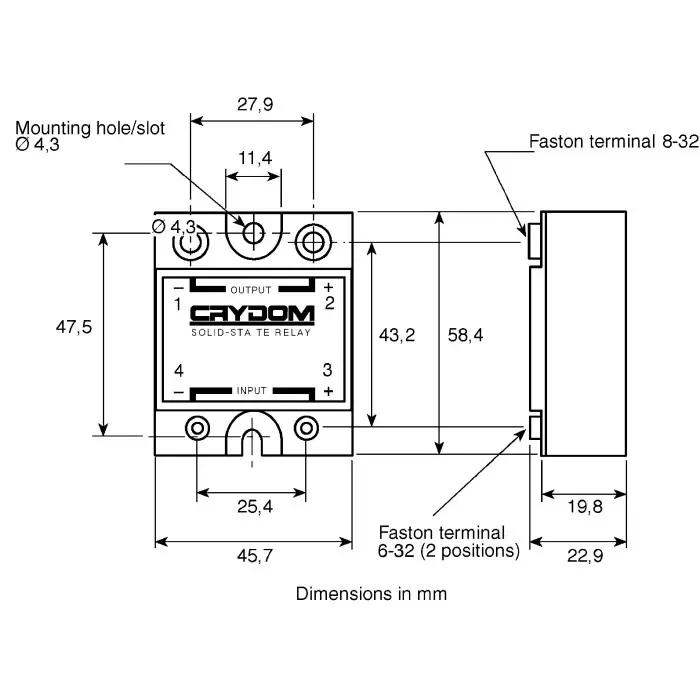

Dimension |
58.4x45.7x22.9 mm |
Relay Type |
Solid State Relay |
Output Device |
Transistor |
Name of Manufacturer/Packer/Importer |
SENSATA/CRYDOM |
Maximum Control Voltage |
28 V |
Minimum Load Current |
20 mA |
Minimum Control Voltage |
20 V DC |
Range |
Crydom |
Maximum Turn On Time |
0.15 ms |
Control Voltage Range |
20 to 28 V DC |
Maximum Load Voltage |
1000 V |
Product Code |
5353056 |
Pack of |
1 Pc |
Manufacturer Part Number |
SSC1000-25-24 |
Standards Met |
CE, RoHS Compliant |
