Ships within 15 days
View
View
View
View
| Load Voltage | 100 to 240 V AC |
| Type of Product | Solid State Relay |
| No. of Pole | 1 |
| Height | 22.9 mm |
Load Voltage |
100 to 240 V AC |
Type of Product |
Solid State Relay |
No. of Pole |
1 |
Height |
22.9 mm |
Depth |
58.4 mm |
Operating Temperature Range |
-30 to +80°C |
Mounting Type |
PCB Mount |
Series |
PCV |
Maximum Load Current |
40 A RMS |
Country of Origin |
Mexico |
Special Features |
For use with Resistive Loads Only, Proportional Controller |
Length |
45.7 mm |
Leakage Current |
20 mA |
Maximum Operating Temperature |
+80°C |
Terminal Type |
Screw |
Minimum Operating Temperature |
-30°C |
Dimension |
45.7x58.4x22.9 mm |
Relay Type |
Control Relay |
Output Device |
SCR |
Switch Type |
Zero Crossing |
Name of Manufacturer/Packer/Importer |
SENSATA/CRYDOM |
Maximum Control Voltage |
10 V DC |
Minimum Load Current |
0.05 A RMS |
Minimum Control Voltage |
2 V DC |
Maximum Turn On Time |
8 ms |
Control Voltage Range |
2 to 10 V DC |
Maximum Load Voltage |
240 V AC |
Minimum Load Voltage |
100 V AC |
Product Code |
2181892 |
Pack of |
1 Pc |
Manufacturer Part Number |

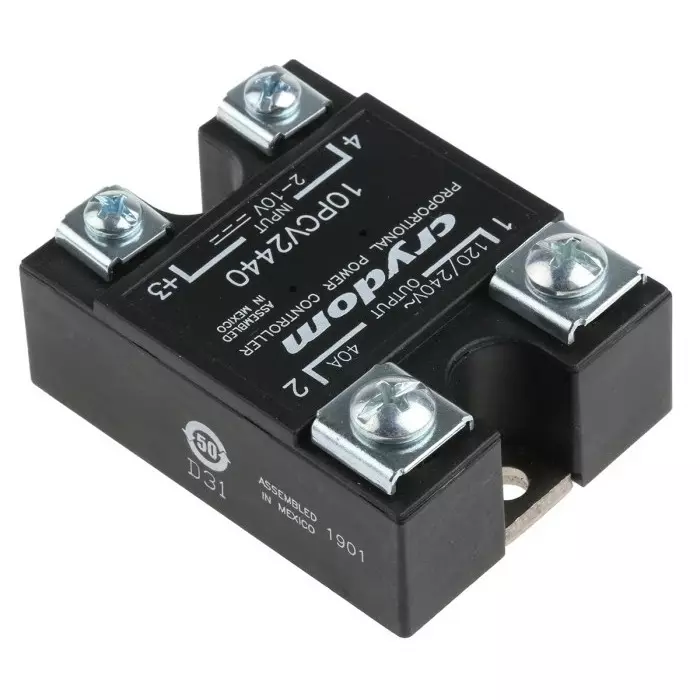

10PCV2440 |
Standards Met |
CE, CSA |
