| Load Voltage | 24 to 280 V AC |
| Type of Product | Solid State Relay |
| Height | 22.9 mm |
| Depth | 45.7 mm |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Load Voltage |
24 to 280 V AC |
Type of Product |
Solid State Relay |
Height |
22.9 mm |
Depth |
45.7 mm |
Operating Temperature Range |
-40 to +80°C |
Mounting Type |
Panel Mount |
Series |
1 |
Maximum Load Current |
110 A |
Country of Origin |
Mexico |
Length |
58.4 mm |
Leakage Current |
10 mA |
Maximum Operating Temperature |
+80°C |
Terminal Type |
Screw |
Minimum Operating Temperature |
-40°C |

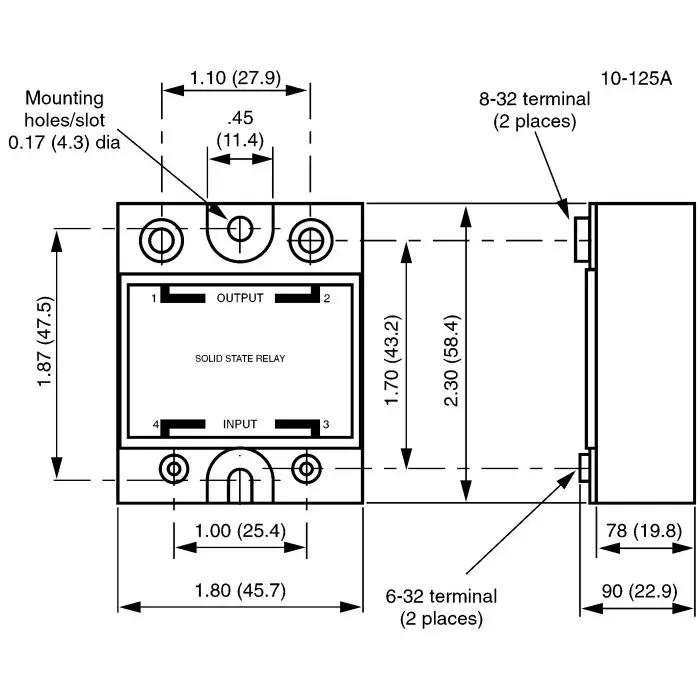

Dimension |
58.4x45.7x22.9 mm |
Output Device |
SCR |
Switch Type |
Zero Cross |
Name of Manufacturer/Packer/Importer |
SENSATA/CRYDOM |
Maximum Control Voltage |
280 V |
Minimum Load Current |
150 mA |
Minimum Control Voltage |
90 V AC |
Maximum Turn On Time |
10 ms |
Control Voltage Range |
90 to 280 V AC |
Maximum Load Voltage |
280 V RMS |
Minimum Load Voltage |
24 V AC |
Product Code |
3583019 |
Pack of |
1 Pc |
Manufacturer Part Number |
A24110PG |
