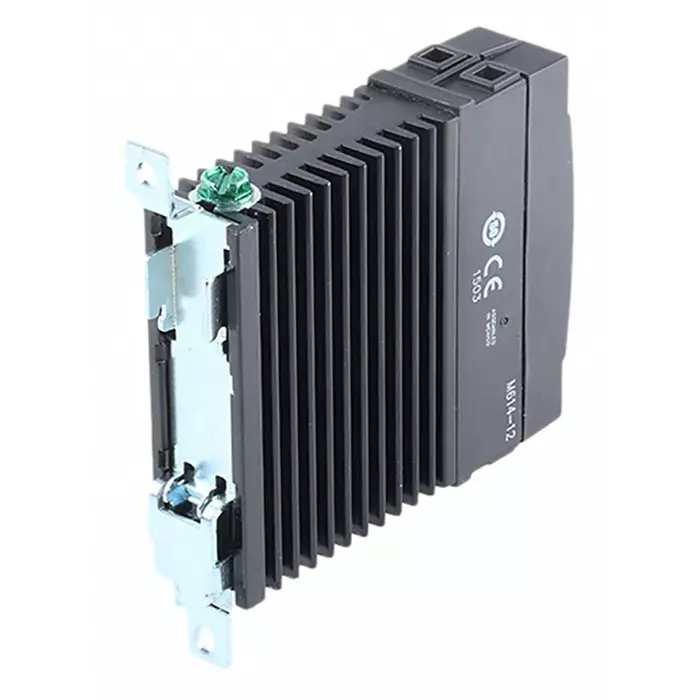

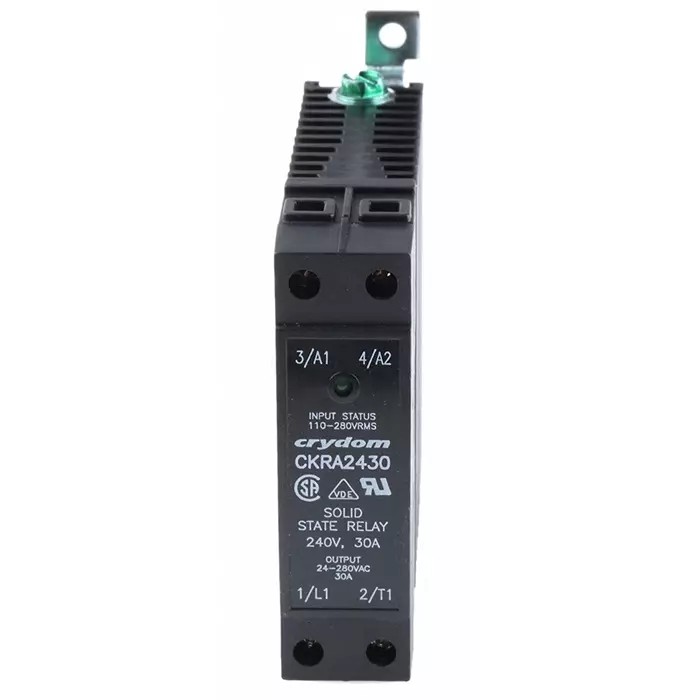

SENSATA/CRYDOM Solid State Relay CKR Series 30 A RMS Load DIN Rail Mount 280 V Control, CKRA2430
SENSATA/CRYDOM Solid State Relay CKR Series 30 A RMS Load DIN Rail Mount 280 V Control, CKRA2430
SENSATA/CRYDOM Solid State Relay CKR Series 30 A RMS Load DIN Rail Mount 280 V Control, CKRA2430
SENSATA/CRYDOM Solid State Relay CKR Series 30 A RMS Load DIN Rail Mount 280 V Control, CKRA2430
SENSATA/CRYDOM Solid State Relay CKR Series 30 A RMS Load DIN Rail Mount 280 V Control, CKRA2430
SENSATA/CRYDOM Solid State Relay CKR Series 30 A RMS Load DIN Rail Mount 280 V Control, CKRA2430

SENSATA/CRYDOM Solid State Relay CKR Series 30 A RMS Load DIN Rail Mount 280 V Control, CKRA2430

Visit the SENSATA/CRYDOM Store
EMI starts at ₹964/month. No Cost EMI available.
Available offers
Flat ₹200 off on Order above ₹7,000 | Valid for NEW Business Users

View

Flat ₹100 off on Order above ₹5000 | Valid for NEW Business Users

View

Flat ₹400 off on Order above ₹10,000 | Valid for REPEAT Business User

View

Flat ₹800 off on Order above ₹20,000 | Valid for REPEAT Business User

View

Features
Load Voltage 24 to 280 V AC
Type of Product Solid State Relay
Height 99 mm
Depth 22.5 mm
More SENSATA/CRYDOM Solid State Relay products More Solid State Relay products
warranty Warranty as per brand
original products 100% Original Products
secure payments Secure payments
buyer protection 100% Buyer protection
top brands Top Brands

Load Voltage

24 to 280 V AC

Type of Product

Solid State Relay

Height

99 mm

Depth

22.5 mm

Operating Temperature Range

-40 to +80°C

Mounting Type

DIN Rail

Series

CKR

Maximum Load Current

30 A RMS

Country of Origin

Mexico

Capacitance

8 pF

Length

81.9 mm

Leakage Current

10 mA RMS

Maximum Operating Temperature

+80°C

Terminal Type

Box Clamp

Minimum Operating Temperature

-40°C

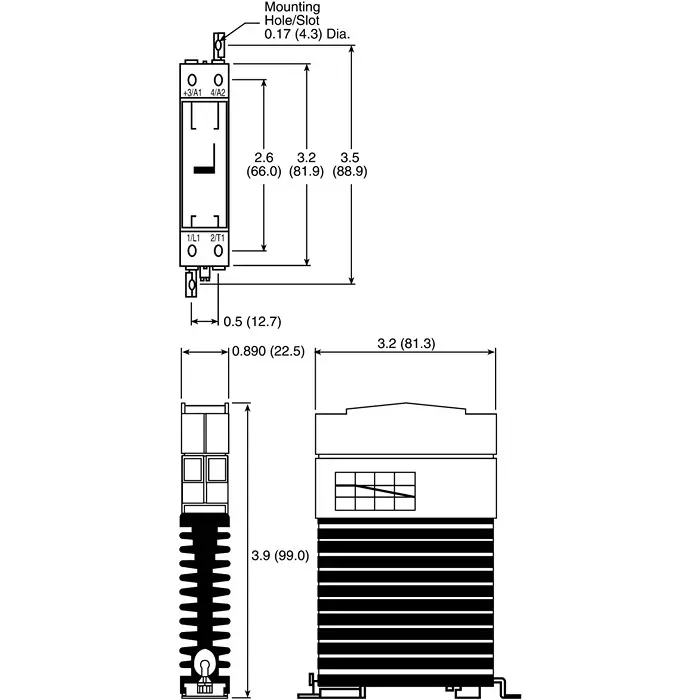

Dimension

81.9x22.5x99 mm

Output Device

SCR

Switch Type

Zero Cross

Name of Manufacturer/Packer/Importer

SENSATA/CRYDOM

Maximum Control Voltage

280 V RMS

Minimum Load Current

0.15 A

Minimum Control Voltage

110 V AC

Maximum Turn On Time

1/2 cycle

Control Voltage Range

90 to 280 V AC

Maximum Load Voltage

280 V RMS

Product Code

3617825

Pack of

1 Pc

Manufacturer Part Number

CKRA2430

Standards Met

CE
