| Load Voltage | 48 to 530 VRMS |

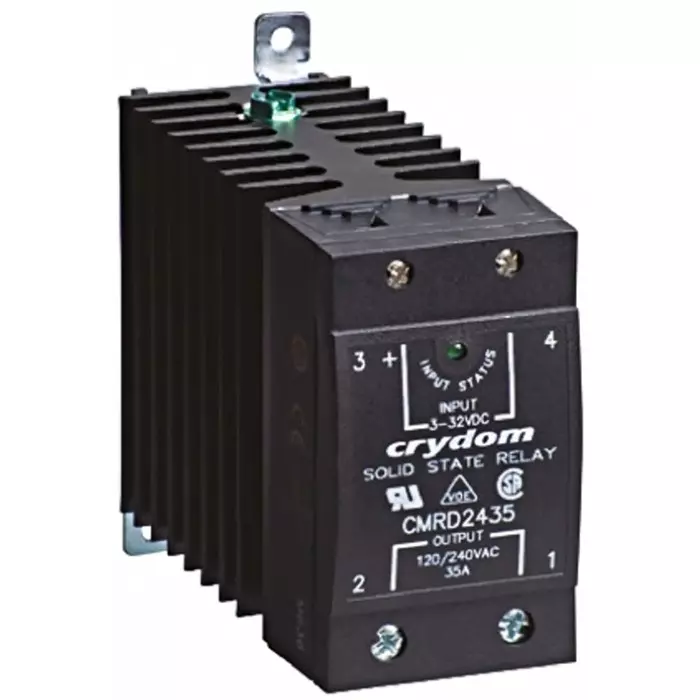

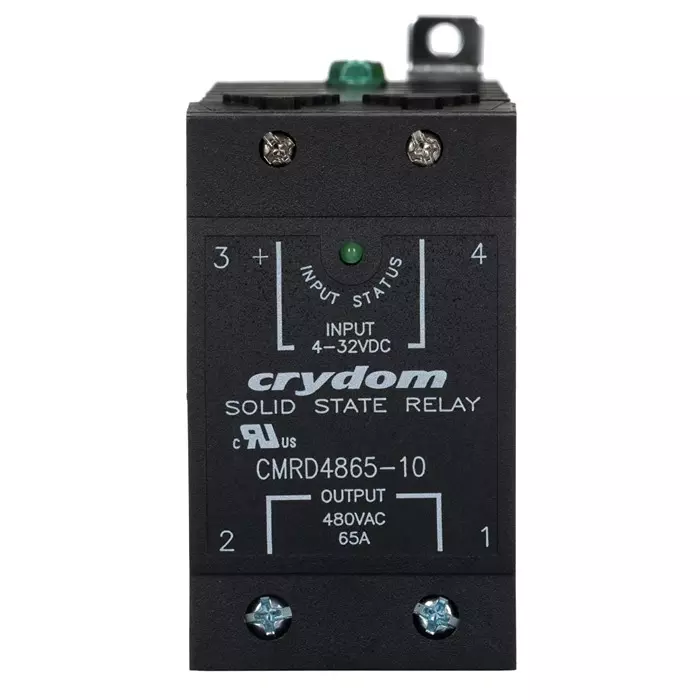

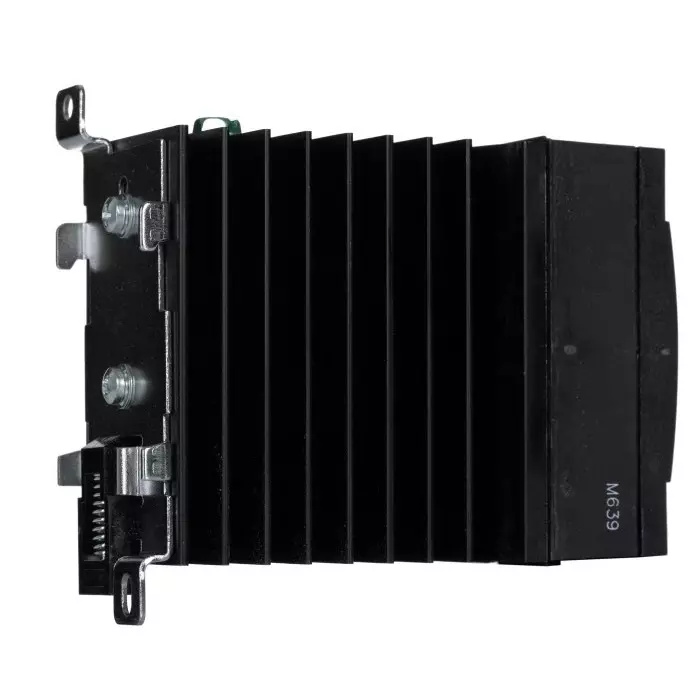

| Type of Product | Solid State Relay |
| Height | 76.2 mm |
| Depth | 76.2 mm |
Load Voltage |
48 to 530 VRMS |
Type of Product |
Solid State Relay |
Height |
76.2 mm |
Depth |
76.2 mm |
Operating Temperature Range |
-40 to +80°C |
Mounting Type |
DIN Rail |
Series |
CMR48 |
Maximum Load Current |
65 A |
Country of Origin |
Mexico |
Capacitance |
8 pF |
Length |
44.5 mm |
Leakage Current |
10 mA RMS |
Maximum Operating Temperature |
+80°C |
Contact Configuration |
SPST |
Terminal Type |
Screw |
Minimum Operating Temperature |
-40°C |
Dimension |
44.5x76.2x76.2 mm |
Relay Type |
Solid State Relay |
Output Device |
SCR |
Switch Type |
Instantaneous |
Name of Manufacturer/Packer/Importer |
SENSATA/CRYDOM |
Maximum Control Voltage |
32 V DC |
Minimum Load Current |
0.15 A RMS |
Minimum Control Voltage |
3 V DC |
Maximum Turn On Time |
1/2 cycle |
Control Voltage Range |
3 to 32 V DC |
Maximum Load Voltage |
530 V RMS |
Minimum Load Voltage |
48 V RMS |
Product Code |
7360845 |
Pack of |
1 Pc |
Manufacturer Part Number |
CMRD4865-10 |
Standards Met |
CE, CSA, RoHS Compliant |
