| Load Voltage | 24 to 280 V AC |
| Type of Product | Solid State Relay |
| Height | 23 mm |
| Depth | 45.7 mm |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Load Voltage |
24 to 280 V AC |
Type of Product |
Solid State Relay |
Height |
23 mm |
Depth |
45.7 mm |
Operating Temperature Range |
-40 to +80°C |
Mounting Type |
Panel Mount |
Series |
1 |
Maximum Load Current |
50 A RMS |
Country of Origin |
Mexico |
Capacitance |
8 pF |
Length |
58.4 mm |
Leakage Current |
1 mA |
Maximum Operating Temperature |
+80°C |
Terminal Type |
Screw |
Minimum Operating Temperature |
-40°C |

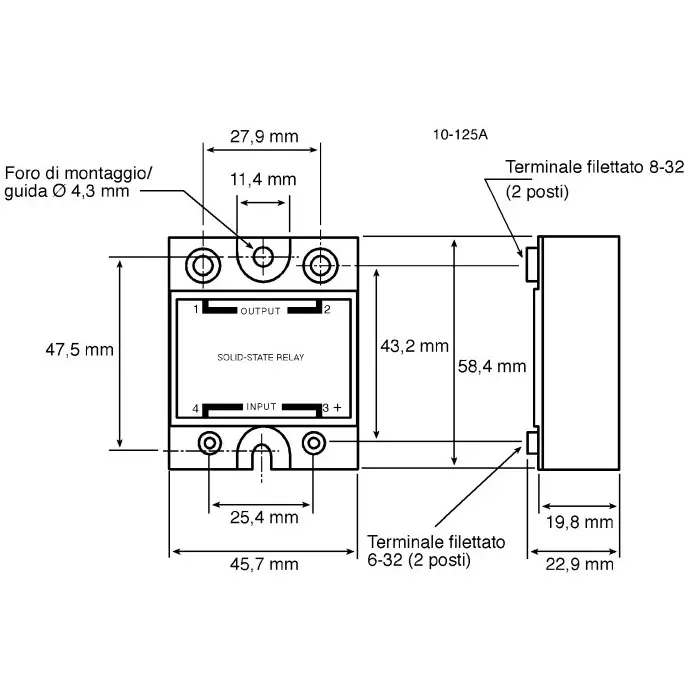

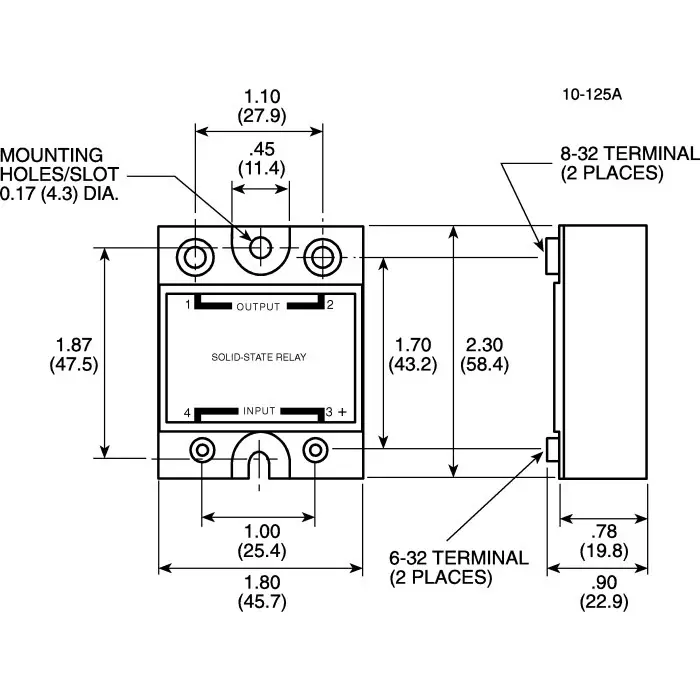

Dimension |
58.4x45.7x23 mm |
Output Device |
SCR |
Switch Type |
Instantaneous |
Name of Manufacturer/Packer/Importer |
SENSATA/CRYDOM |
Maximum Control Voltage |
32 V |
Minimum Load Current |
40 mA |
Minimum Control Voltage |
3 V |
Maximum Turn On Time |
1/2 cycle |
Control Voltage Range |
3 to 32 V DC |
Maximum Load Voltage |
280 V RMS |
Minimum Load Voltage |
24 V RMS |
Product Code |
2912034 |
Pack of |
1 Pc |
Manufacturer Part Number |
D2450-10 |
Standards Met |
CE, CSA, RoHS Compliant |
