| Load Voltage | 1 to 72 V DC |

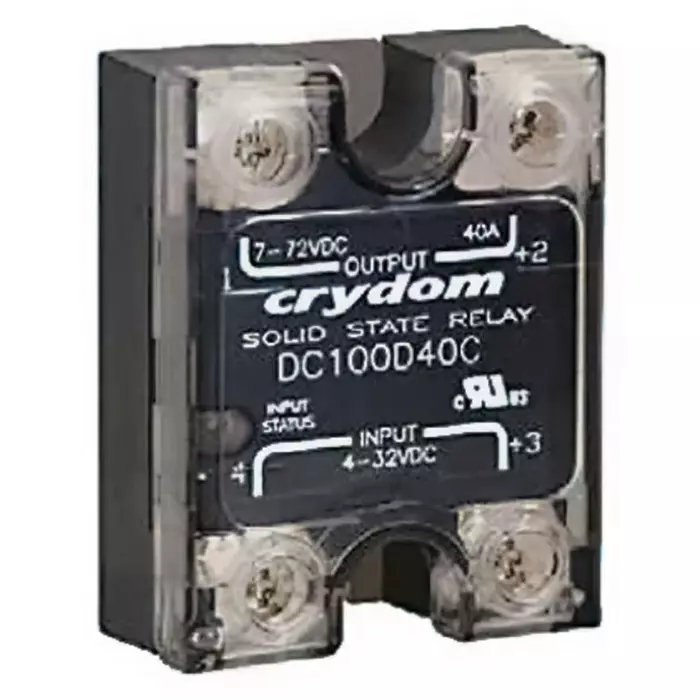

| Type of Product | Solid State Relay |
| Height | 32.9 mm |
| Depth | 44.5 mm |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Load Voltage |
1 to 72 V DC |
Type of Product |
Solid State Relay |
Height |
32.9 mm |
Depth |
44.5 mm |
Operating Temperature Range |
-30 to +80°C |
Mounting Type |
Surface Mount |
Maximum Load Current |
10 A |
Country of Origin |
Mexico |
Length |
58.2 mm |
Leakage Current |
0.15 mA |
Contact Configuration |
SPST |
Terminal Type |
Screw |
Dimension |
58.2x44.5x32.9 mm |
Output Device |
MOSFET |
Switch Type |
Instantaneous |
Name of Manufacturer/Packer/Importer |
SENSATA/CRYDOM |
Maximum Control Voltage |
32 V DC |
Minimum Load Current |
2.5 mA |
Minimum Control Voltage |
4 V DC |
Maximum Turn On Time |
0.075 ms |
Control Voltage Range |
4 to 32 V DC |
Maximum Load Voltage |
72 V DC |
Minimum Load Voltage |
1 V DC |
Product Code |
7569525 |
Pack of |
1 Pc |
Package Type |
Panel Mount |
Manufacturer Part Number |
DC100D10C |
