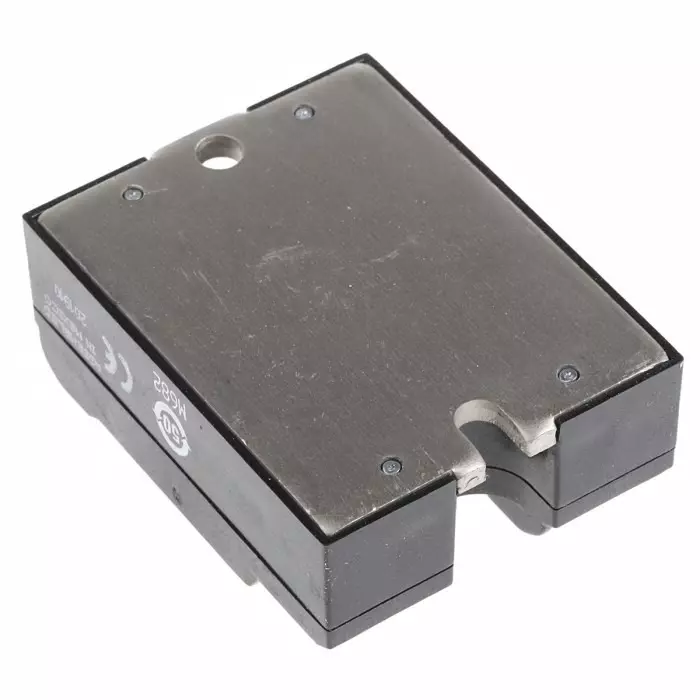

SENSATA/CRYDOM Solid State Relay 20 A Load Surface Mount 100 V 32 Control, D1D20
d1d20-sensata-crydom-sensata-crydom-solid-state-relay-20-a-load-surface-mount-100-v-load-32-v-control-200-2058-rs
d1d20-sensata-crydom-sensata-crydom-solid-state-relay-20-a-load-surface-mount-100-v-load-32-v-control-200-2058-rs
d1d20-sensata-crydom-sensata-crydom-solid-state-relay-20-a-load-surface-mount-100-v-load-32-v-control-200-2058-rs
d1d20-sensata-crydom-sensata-crydom-solid-state-relay-20-a-load-surface-mount-100-v-load-32-v-control-200-2058-rs
d1d20-sensata-crydom-sensata-crydom-solid-state-relay-20-a-load-surface-mount-100-v-load-32-v-control-200-2058-rs

SENSATA/CRYDOM Solid State Relay 20 A Load Surface Mount 100 V 32 Control, D1D20

Visit the SENSATA/CRYDOM Store
EMI starts at ₹1677/month. No Cost EMI available.
Available offers
Get Flat 10% off on your First Orders above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 3% off on First Order above ₹3,000

View

Features
Load Voltage 0 to 100 V DC
Type of Product Solid State Relay
Height 23 mm
Depth 58.4 mm
More SENSATA/CRYDOM Solid State Relay products More Solid State Relay products
100% Original Products
100% Original Products
Secure Payments
Secure Payments
100% Buyer Protection
100% Buyer Protection
Top Brands
Top Brands

Load Voltage

0 to 100 V DC

Type of Product

Solid State Relay

Height

23 mm

Depth

58.4 mm

Operating Temperature Range

-20 to +80°C

Mounting Type

Surface Mount

Maximum Load Current

20 A

Country of Origin

Mexico

Length

45.7 mm

Leakage Current

0.3 mA

Maximum Operating Temperature

+80°C

Minimum Operating Temperature

-20°C

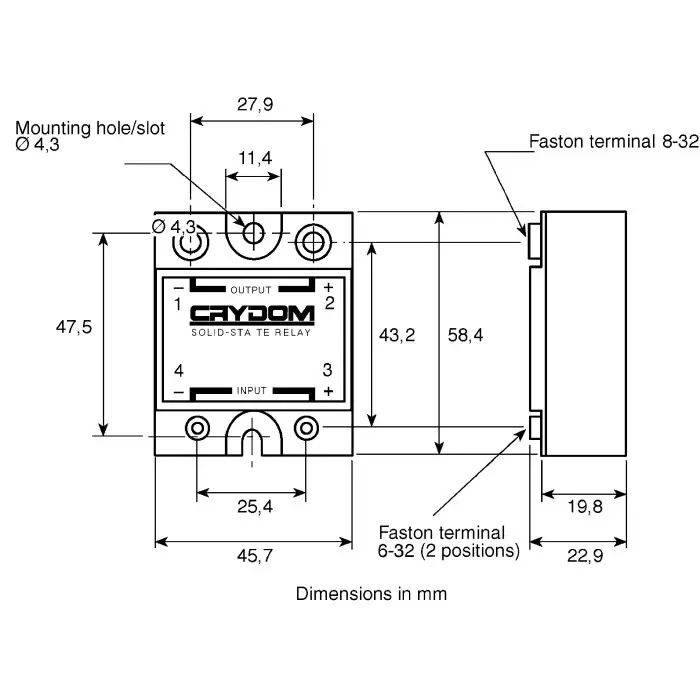

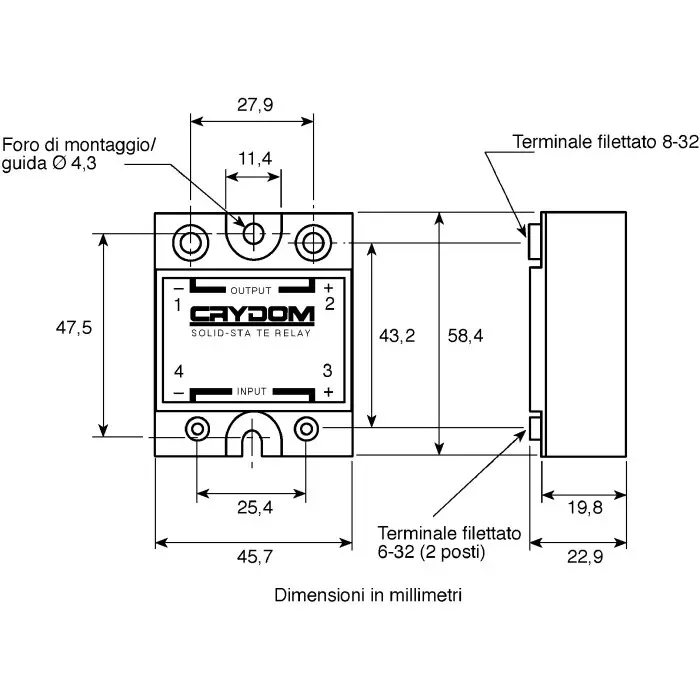

Dimension

45.7x58.4x23 mm

Output Device

MOSFET

Name of Manufacturer/Packer/Importer

SENSATA/CRYDOM

Maximum Control Voltage

32 V

Minimum Load Current

1 mA

Minimum Control Voltage

3.5 V DC

Maximum Turn On Time

0.1 ms

Control Voltage Range

3.5 to 32 V DC

Maximum Load Voltage

100 V

Product Code

2002058

Pack of

1 Pc

Manufacturer Part Number

D1D20

Distrelec Product Id

30084031
