| Load Voltage | 48 to 530 V AC |

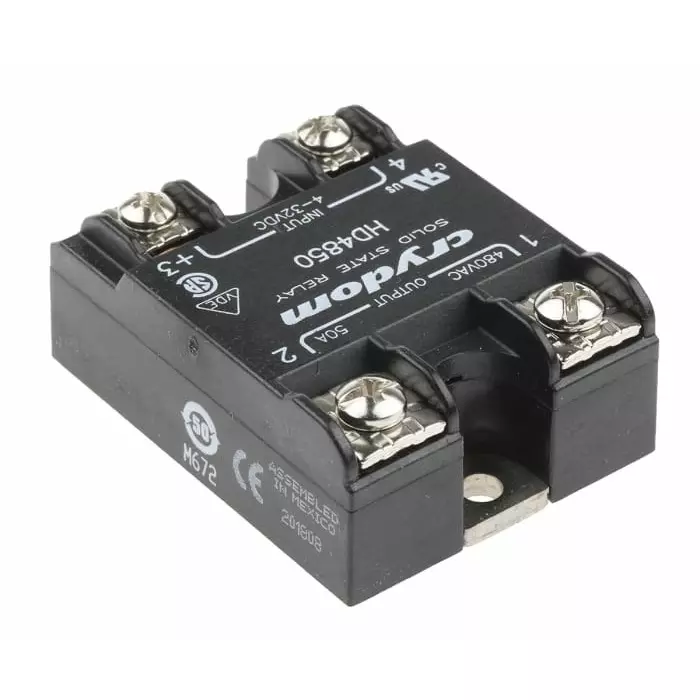

| Type of Product | Solid State Relay |
| Height | 23 mm |
| Depth | 45.7 mm |
Load Voltage |
48 to 530 V AC |
Type of Product |
Solid State Relay |
Height |
23 mm |
Depth |
45.7 mm |
Operating Temperature Range |
-40 to +80°C |
Mounting Type |
Panel Mount |
Maximum Load Current |
50 A |
Country of Origin |
Mexico |
Length |
58.4 mm |
Maximum Operating Temperature |
+80°C |
Minimum Operating Temperature |
-40°C |
Dimension |
58.4x45.7x23 mm |
Output Device |
SCR |
Switch Type |
Zero Cross |
Name of Manufacturer/Packer/Importer |
SENSATA/CRYDOM |
Maximum Control Voltage |
32 V |
Minimum Load Current |
40 mA |
Control Voltage Range |
3 to 32 V DC |
Maximum Load Voltage |
530 V |
Product Code |
352890 |
Pack of |
1 Pc |
Manufacturer Part Number |
HD4850 |
Distrelec Product Id |
30084113 |
