Ships within 120 days
View
View
View
View
| Load Voltage | 48 to 530 VRMS |
| Type of Product | Solid State Relay |
| Height | 79.7 mm |
| Depth | 35.4 mm |
Load Voltage |
48 to 530 VRMS |
Type of Product |
Solid State Relay |
Height |
79.7 mm |
Depth |
35.4 mm |
Operating Temperature Range |
-40 to +80°C |
Mounting Type |
Panel Mount |
Series |
53TP |
Maximum Load Current |
50 A RMS |
Country of Origin |
Mexico |
Capacitance |
8 pF |
Length |
101.3 mm |
Leakage Current |
3 mA RMS |
Maximum Operating Temperature |
+80°C |
Terminal Type |
Screw |
Minimum Operating Temperature |
-40°C |
Dimension |
101.3x35.4x79.7 mm |
Relay Type |
Solid State Relay |
Output Device |
SCR |
Switch Type |
Zero Cross |
Name of Manufacturer/Packer/Importer |
SENSATA/CRYDOM |
Maximum Control Voltage |
32 V DC |
Minimum Load Current |
0.1 A RMS |
Minimum Control Voltage |
4 V DC |
Maximum Turn On Time |
8.33 ms |
Control Voltage Range |
4 to 32 V DC |
Maximum Load Voltage |
530 V AC |
Minimum Load Voltage |
48 V AC |
Product Code |
7203928 |
Pack of |
1 Pc |
Package Type |
IP20 or IP00 |

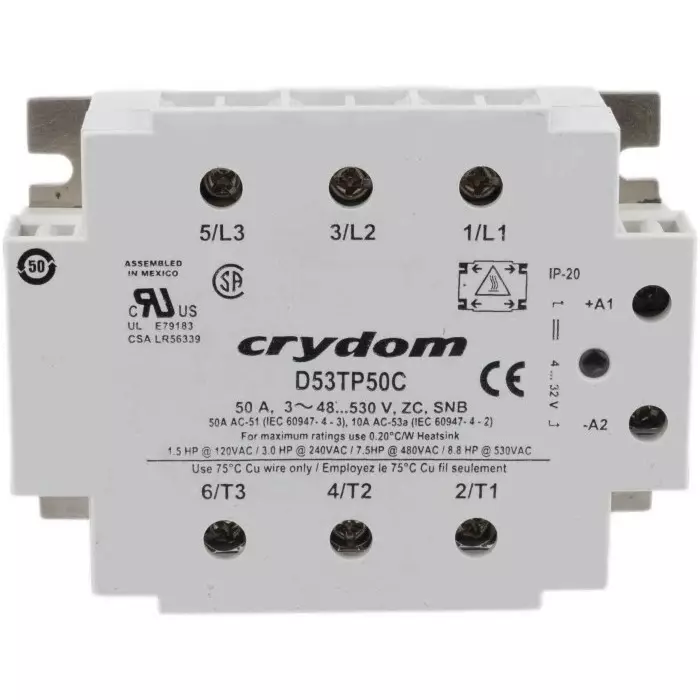

Manufacturer Part Number |
D53TP50C |
Standards Met |
CE, RoHS Compliant |
