| Load Voltage | 3 to 60 V DC |
| Type of Product | Solid State Relay |
| Height | 58.4 mm |
| Depth | 19.8 mm |
Load Voltage |
3 to 60 V DC |
Type of Product |
Solid State Relay |
Height |
58.4 mm |
Depth |
19.8 mm |
Operating Temperature Range |
-30 to +80°C |
Mounting Type |
Surface Mount |
Series |
DC60 |
Maximum Load Current |
7 A |
Country of Origin |
Mexico |
Capacitance |
8 pF |
Length |
45.7 mm |
Leakage Current |
0.1 mA |
Maximum Operating Temperature |
+80°C |
Contact Configuration |
SP-NC |
Terminal Type |
Screw |
Minimum Operating Temperature |
-30°C |
Dimension |
45.7x19.8x58.4 mm |
Output Device |
Transistor |
Switch Type |
DC |
Name of Manufacturer/Packer/Importer |
SENSATA/CRYDOM |
Maximum Control Voltage |
32 V DC |
Minimum Load Current |
20 mA |
Minimum Control Voltage |
3.5 V DC |
Maximum Turn On Time |
0.1 ms |
Control Voltage Range |
3.5 to 32 V DC |
Maximum Load Voltage |
60 V DC |
Minimum Load Voltage |
3 V DC |
Product Code |
7360882 |
Pack of |
1 Pc |
Manufacturer Part Number |

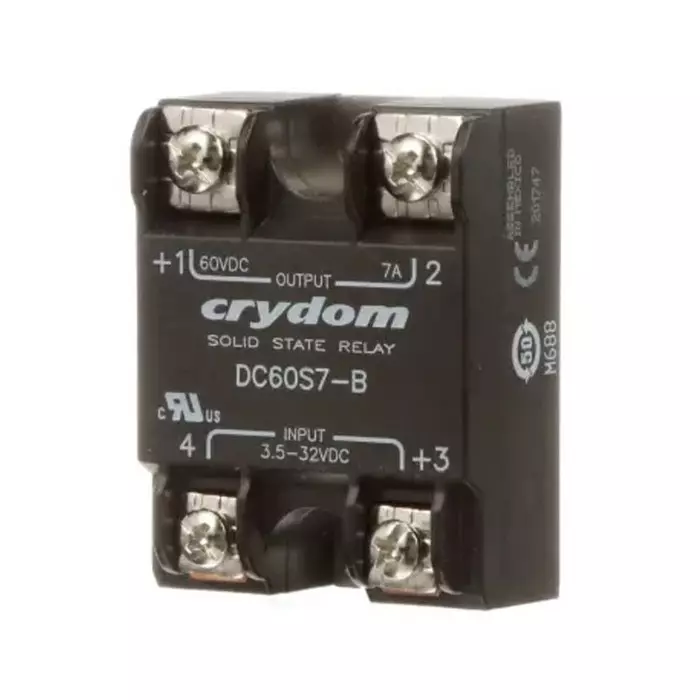

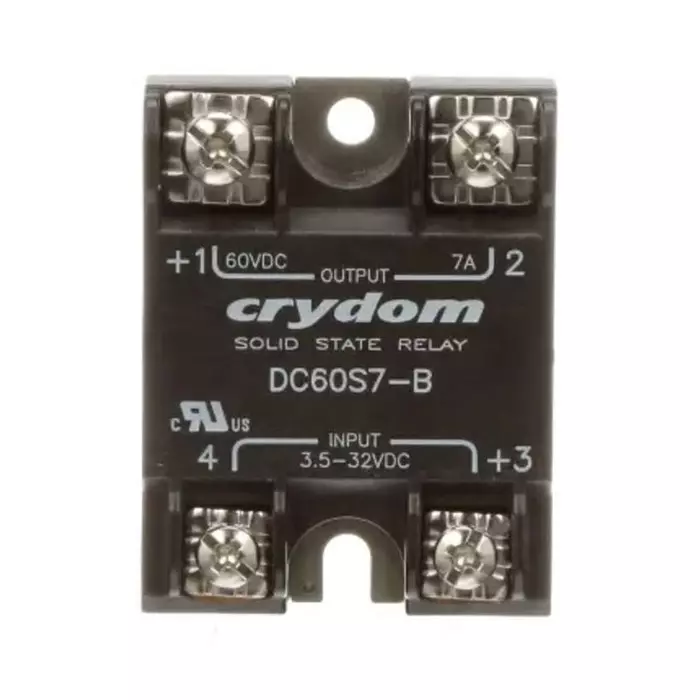

DC60S7-B |
Standards Met |
CE, RoHS Compliant |
