| Load Voltage | 48 to 660 VRMS |
| Type of Product | Solid State Relay |
| Height | 25.4 mm |
| Depth | 10.2 mm |
Load Voltage |
48 to 660 VRMS |
Type of Product |
Solid State Relay |
Height |
25.4 mm |
Depth |
10.2 mm |
Operating Temperature Range |
-40 to +80°C |
Mounting Type |
PCB Mount |
Maximum Load Current |
5 A |
Country of Origin |
Mexico |
Length |
43.1 mm |
Leakage Current |
0.1 mA RMS |
Maximum Operating Temperature |
+80°C |
Contact Configuration |
SPST |
Terminal Type |
Through Hole |
Minimum Operating Temperature |
-40°C |

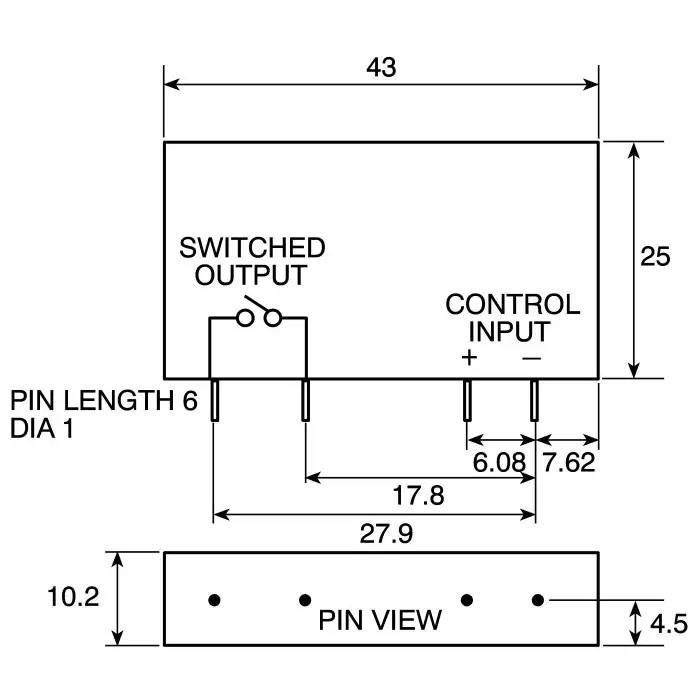

Dimension |
43.1x10.2x25.4 mm |
Output Device |
SCR |
Switch Type |
Instantaneous |
Name of Manufacturer/Packer/Importer |
SENSATA/CRYDOM |
Maximum Control Voltage |
32 V DC |
Minimum Load Current |
0.06 A RMS |
Minimum Control Voltage |
15 V DC |
Maximum Turn On Time |
1/2Cycle |
Control Voltage Range |
15 to 32 V DC |
Maximum Load Voltage |
660 V RMS |
Minimum Load Voltage |
48 V RMS |
Product Code |
7385579 |
Pack of |
1 Pc |
Package Type |
SIP |
Manufacturer Part Number |
MCXE480D5R |
