| Load Voltage | 24 to 280 V |
| Type of Product | Solid State Relay |
| Height | 25.4 mm |
| Depth | 10.2 mm |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Load Voltage |
24 to 280 V |
Type of Product |
Solid State Relay |
Height |
25.4 mm |
Depth |
10.2 mm |
Operating Temperature Range |
-30 to +80°C |
Mounting Type |
PCB Mount |
Series |
GA8 |
Maximum Load Current |
5 A |
Country of Origin |
Mexico |
Capacitance |
8 pF |
Length |
43.2 mm |
Maximum Operating Temperature |
+80°C |
Terminal Type |
PCB Pin |
Minimum Operating Temperature |
-30°C |

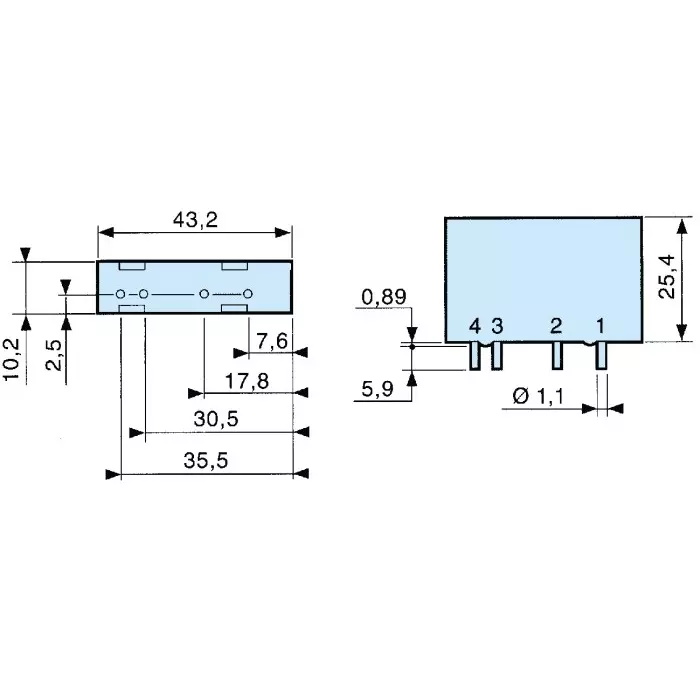

Dimension |
43.2x10.2x25.4 mm |
Relay Type |
Solid State Relay |
Output Device |
Triac |
Switch Type |
Zero Cross |
Name of Manufacturer/Packer/Importer |
SENSATA/CRYDOM |
Maximum Control Voltage |
28 V DC |
Minimum Load Current |
0.05 mA |
Minimum Control Voltage |
3 V DC |
Control Voltage Range |
3 to 32 V DC |
Maximum Load Voltage |
280 V RMS |
Product Code |
2313392 |
Pack of |
1 Pc |
Package Type |
SIP |
Manufacturer Part Number |
84065030 |
Standards Met |
CE, RoHS Compliant |
