| Load Voltage | 24 to 280 VRMS |
| Type of Product | Solid State Relay |
| No. of Pole | 1 |
| Height | 57.2 mm |
Load Voltage |
24 to 280 VRMS |
Type of Product |
Solid State Relay |
No. of Pole |
1 |
Height |
57.2 mm |
Depth |
20.1 mm |
Operating Temperature Range |
-30 to +80°C |
Mounting Type |
Panel Mount |
Series |
CL Series |
Maximum Load Current |
10 A RMS |
Country of Origin |
Mexico |
Capacitance |
8 pF |
Special Features |
LED Status Indicator, Redesigned Housing With Anti Rotation Barriers |
Length |
44.5 mm |
Leakage Current |
7 mA RMS |
Maximum Operating Temperature |
+80°C |
Terminal Type |
Screw |
Minimum Operating Temperature |
-30°C |
Dimension |
44.5x20.1x57.2 mm |
Relay Type |
Solid State Relay |
Output Device |
Triac |
Switch Type |
Zero Cross |
Name of Manufacturer/Packer/Importer |
SENSATA/CRYDOM |
Maximum Control Voltage |
32 V DC |
Minimum Load Current |
150mA RMS |
Minimum Control Voltage |
3 V DC |
Maximum Turn On Time |
1/2 cycle |
Control Voltage Range |
3 to 32 V DC |
Maximum Load Voltage |
280 V RMS |
Minimum Load Voltage |
24 V RMS |
Product Code |
7204044 |
Pack of |
1 Pc |
Manufacturer Part Number |

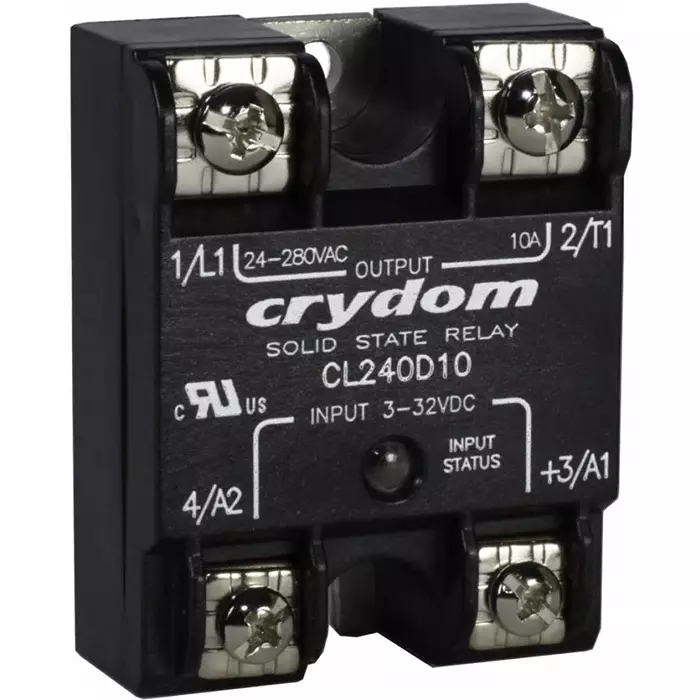

CL240D10 |
Standards Met |
CE, RoHS Compliant |
