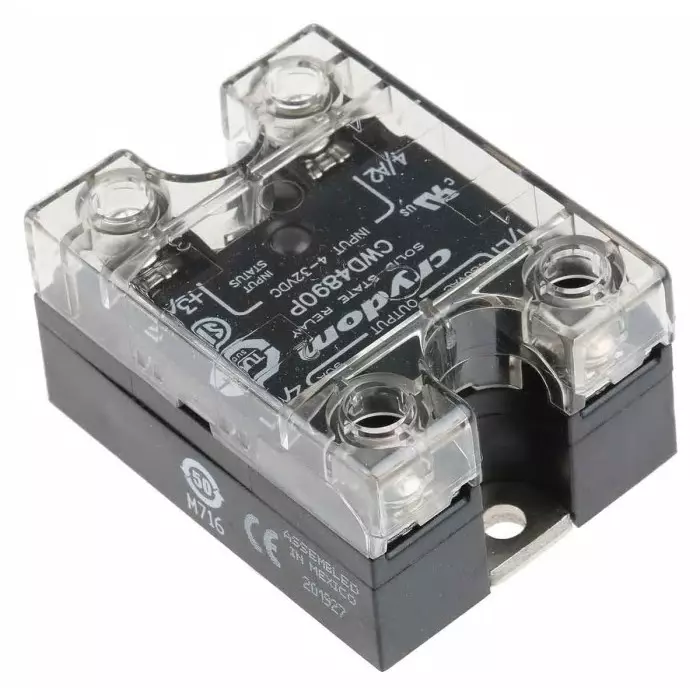

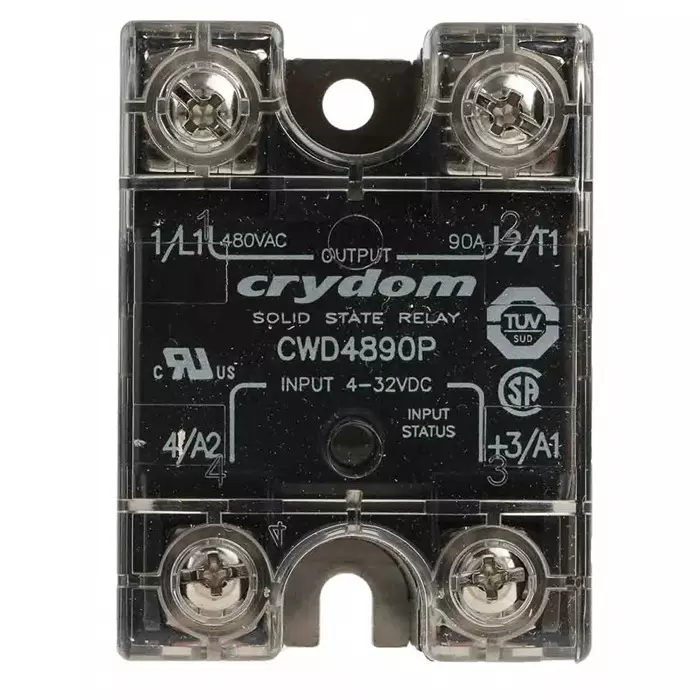

SENSATA/CRYDOM Solid State Relay CW Series 90 A Load Panel Mount 660 V AC 32 DC Control, CWD4890P
SENSATA/CRYDOM Solid State Relay CW Series 90 A Load Panel Mount 660 V AC 32 DC Control, CWD4890P
SENSATA/CRYDOM Solid State Relay CW Series 90 A Load Panel Mount 660 V AC 32 DC Control, CWD4890P
SENSATA/CRYDOM Solid State Relay CW Series 90 A Load Panel Mount 660 V AC 32 DC Control, CWD4890P

SENSATA/CRYDOM Solid State Relay CW Series 90 A Load Panel Mount 660 V AC 32 DC Control, CWD4890P

Visit the SENSATA/CRYDOM Store
EMI starts at ₹1468/month. No Cost EMI available.
Available offers
Flat ₹200 off on Order above ₹7,000 | Valid for NEW Business Users

View

Flat ₹100 off on Order above ₹5000 | Valid for NEW Business Users

View

Flat ₹400 off on Order above ₹10,000 | Valid for REPEAT Business User

View

Flat ₹800 off on Order above ₹20,000 | Valid for REPEAT Business User

View

Features
Load Voltage 48 to 660 V AC
Type of Product Solid State Relay
Height 58.4 mm
Depth 33 mm
More SENSATA/CRYDOM Solid State Relay products More Solid State Relay products
warranty Warranty as per brand
original products 100% Original Products
secure payments Secure payments
buyer protection 100% Buyer protection
top brands Top Brands

Load Voltage

48 to 660 V AC

Type of Product

Solid State Relay

Height

58.4 mm

Depth

33 mm

Operating Temperature Range

-40 to +80°C

Mounting Type

Panel Mount

Series

CW SERIES

Maximum Load Current

90 A

Country of Origin

Mexico

Capacitance

8 pF

Length

25.4 mm

Leakage Current

1 mA RMS

Maximum Operating Temperature

+80°C

Contact Configuration

SPST

Terminal Type

Screw

Minimum Operating Temperature

-40°C

Dimension

25.4x33x58.4 mm

Output Device

SCR

Switch Type

Zero Cross

Name of Manufacturer/Packer/Importer

SENSATA/CRYDOM

Maximum Control Voltage

32 V DC

Minimum Load Current

0.25 A RMS

Minimum Control Voltage

4 V DC

Maximum Turn On Time

1/2 cycle

Control Voltage Range

4 to 32 V DC

Maximum Load Voltage

660 V AC

Minimum Load Voltage

48 V AC

Product Code

7360863

Pack of

1 Pc

Manufacturer Part Number

CWD4890P

Standards Met

CE
