| Load Voltage | 48 to 660 V AC |
| Type of Product | Solid State Relay |
| No. of Pole | 1 |
| Height | 25.4 mm |
Load Voltage |
48 to 660 V AC |
Type of Product |
Solid State Relay |
No. of Pole |
1 |
Height |
25.4 mm |
Depth |
7.6 mm |
Operating Temperature Range |
-30 to +80°C |
Mounting Type |
PCB Mount |
Series |
CX Series |
Maximum Load Current |
5 A |
Country of Origin |
Mexico |
Capacitance |
10 pF |
Special Features |
AC or DC control, Zero-crossing |
Length |
43.1 mm |
Leakage Current |
0.1 mA RMS |
Maximum Operating Temperature |
+80°C |
Minimum Operating Temperature |
-30°C |
Dimension |
43.1x7.6x25.4 mm |
Relay Type |
Solid State Relay |
Output Device |
SCR |
Switch Type |
Zero Cross |
Name of Manufacturer/Packer/Importer |
SENSATA/CRYDOM |
Maximum Control Voltage |
15 V |
Minimum Load Current |
0.06 A |
Minimum Control Voltage |
4 V AC/DC |
Maximum Turn On Time |
1/2 cycle |
Control Voltage Range |
4 to 15 V DC |
Maximum Load Voltage |
660 V AC |
Minimum Load Voltage |
48 V AC |
Product Code |
2912393 |
Pack of |
1 Pc |
Manufacturer Part Number |

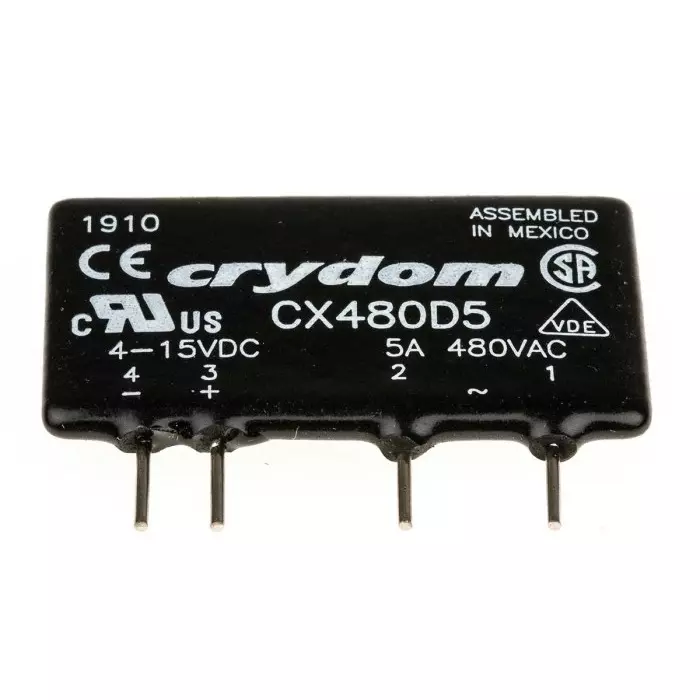

CX480D5 |
Standards Met |
CE, CSA |
