| Load Voltage | 0 to 200 V DC |
| Type of Product | Solid State Relay |
| No. of Pole | 1 |
| Height | 23 mm |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Load Voltage |
0 to 200 V DC |
Type of Product |
Solid State Relay |
No. of Pole |
1 |
Height |
23 mm |
Depth |
58.4 mm |
Operating Temperature Range |
-20 to +80°C |
Mounting Type |
Surface Mount |
Series |
1-DC Series |
Maximum Load Current |
7 A |
Country of Origin |
Mexico |
Capacitance |
8 pF |
Special Features |
DC Control, Epoxy Free Design |
Length |
45.7 mm |
Leakage Current |
0.1 mA RMS |
Maximum Operating Temperature |
+80°C |
Terminal Type |
Screw |
Minimum Operating Temperature |
-20°C |

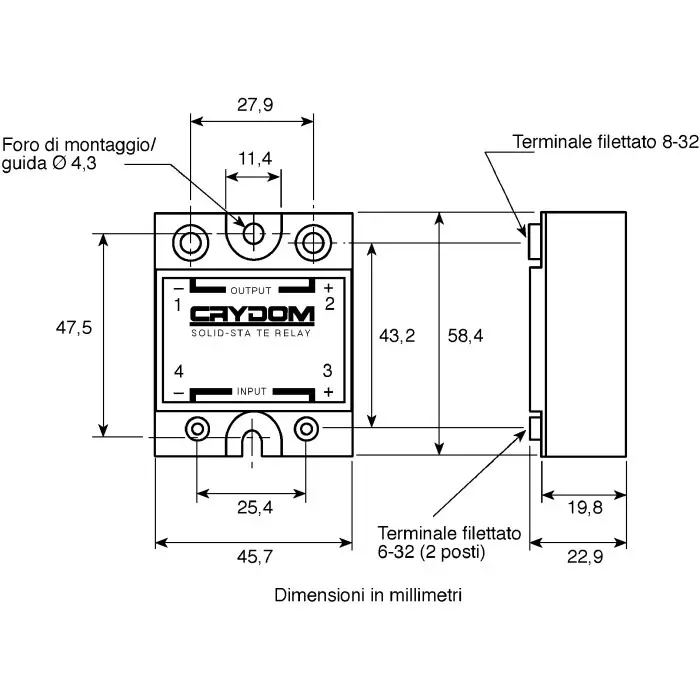

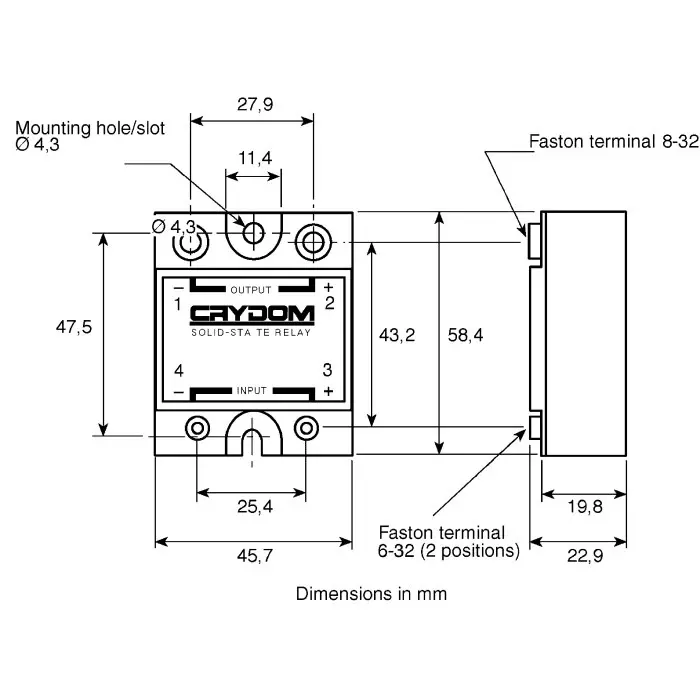

Dimension |
45.7x58.4x23 mm |
Relay Type |
Solid State Relay |
Output Device |
MOSFET |
Name of Manufacturer/Packer/Importer |
SENSATA/CRYDOM |
Maximum Control Voltage |
32 V |
Minimum Load Current |
1 mA |
Maximum Turn On Time |
0.1 ms |
Control Voltage Range |
3.5 to 32 V DC |
Maximum Load Voltage |
200 V |
Product Code |
2912646 |
Pack of |
1 Pc |
Manufacturer Part Number |
D2D07 |
Standards Met |
CE |
