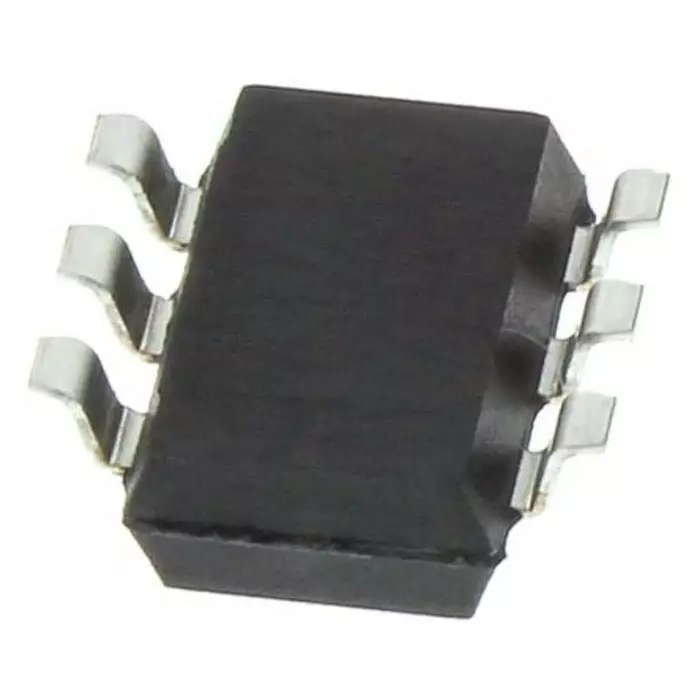

| Model No | LH1540AABTR |
| Load Voltage | 350 V AC |
| Type of Product | Solid State Relay |
| Height | 3.8 mm |
Model No |
LH1540AABTR |
Load Voltage |
350 V AC |
Type of Product |
Solid State Relay |
Height |
3.8 mm |
Depth |
6.5 mm |
Mounting Type |
PCB Mount |
Maximum Load Current |
120 mA |
Country of Origin |
Malaysia |
Capacitance |
0.8 pF |
Length |
8.7 mm |
Leakage Current |
1 μA |
Maximum Operating Temperature |
+85°C |
Terminal Type |
Surface Mount |
Minimum Operating Temperature |
-40°C |
Dimension |
8.7x6.5x3.81 mm |
Switching |
DC |
Relay Type |
Solid State Relay |
Output Device |
MOSFET |
Name of Manufacturer/Packer/Importer |
RS Components & Controls (I) Ltd |
Maximum Control Voltage |
1.5 V |
Maximum Turn On Time |
2 ms |
Maximum Load Voltage |
350 V |
Category |
Solid State Relay |
Pack of |
1000 Pcs |
Temperature Range |
-40 to +85°C |
Package Type |
SMD |
