Ships within 19 days
Model No
View
View
View
View
| Power Consumption | Approx.0.17 VA / 0.15 W (at 24 VAC), Approx.1.0 W (at 24 VDC) |
| Control Output | Contact Output: AC250V/DC30V 5A, Resistive Load (cosΦ=1), Minimum Applicable Load: DC5V 100 mA (P Level, Reference Value) |
| Protection Class | IP40 (Panel Surface) |
| Storage Temperature | -25 to +65°C (But No Condensation or Freezing) |
Power Consumption |
Approx.0.17 VA / 0.15 W (at 24 VAC), Approx.1.0 W (at 24 VDC) |
Control Output |
Contact Output: AC250V/DC30V 5A, Resistive Load (cosΦ=1), Minimum Applicable Load: DC5V 100 mA (P Level, Reference Value) |
Protection Class |
IP40 (Panel Surface) |
Storage Temperature |
-25 to +65°C (But No Condensation or Freezing) |

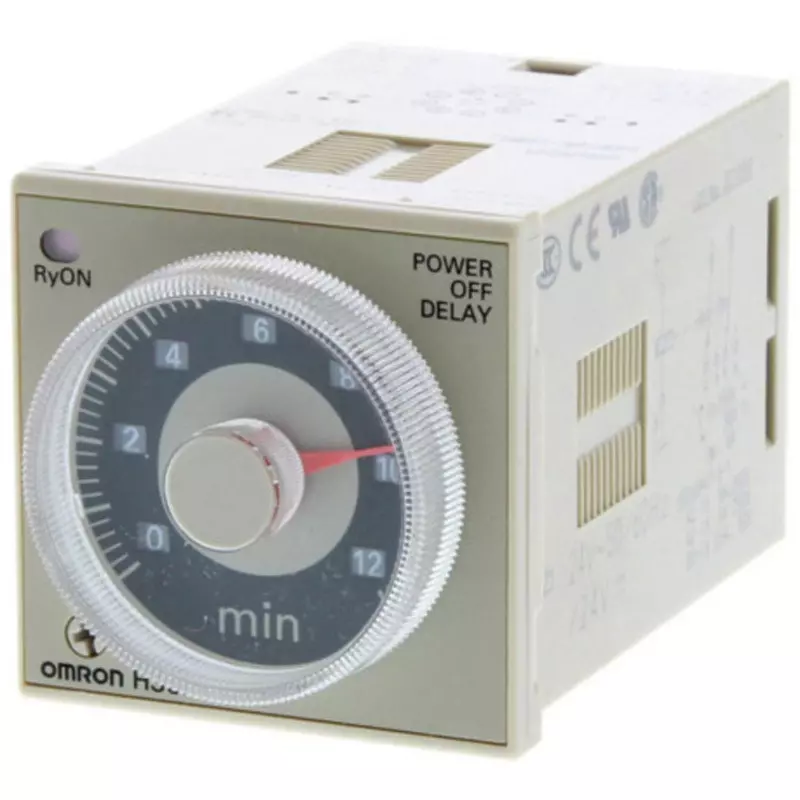

Type of Product |
Solid State Timer |
Model No |
H3CR-H8RL AC/DC24 S |
Mass (g) |
About 120 g |
Withstand Voltage |
2000 VAC 50/60 Hz for 1 min (Between Charged Metal Parts and Non-Charged Metal Parts) 2000 VAC 50/60 Hz for 1 min (Between Control Output and Operation Circuit) 2000 VAC 50/60 Hz for 1 min (Between Contacts of Different Polarity) 1000 VAC 50/60 Hz for 1 min (Between Non-Continuous Contacts) ) |
Monotaro ID |
35227306 |
Adjustable Time |
0.05~12 s |
Operation Type |
Instantaneous Operation |
Power Supply Voltage |
AC/DC 24 |
Type of Sign |
Recessed Mounting / Surface Mounting |
Output Type |
Contact Output (Relay 1c) |
Input Method |
No Voltage Input |
Pin Type |
8 |
Scale Format |
4-Step Switching Type: 0.6, 1.2, 6, 12 mm |
Series |
H3CR-H |
Input Signal |
Reset |
Import Country |
Direct Import from Japan |
Operating Temperature Range |
-10~55°C (No Condensation or Freezing) |
Country of Origin |
Indonesia |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Outer Dimensions (W x D x H) (mm) |
48×93×48 |
