Ships within 19 days
Model No
Maximum Setting Time of Graduation
View
View
View
View
| Power Consumption | 0.9 W (at 24VDC) |
| Control Output | AC250 V 5A resisti Ve load (cosΦ = 1) <br> Minimum applicable load DC5 V 1mA (P le Vel, reference Value) |
| Protection Class | IP40 |
| Storage Temperature | -25 to 65℃ |
Power Consumption |
0.9 W (at 24VDC) |
Control Output |
AC250 V 5A resisti Ve load (cosΦ = 1) <br> Minimum applicable load DC5 V 1mA (P le Vel, reference Value) |
Protection Class |
IP40 |
Storage Temperature |
-25 to 65℃ |

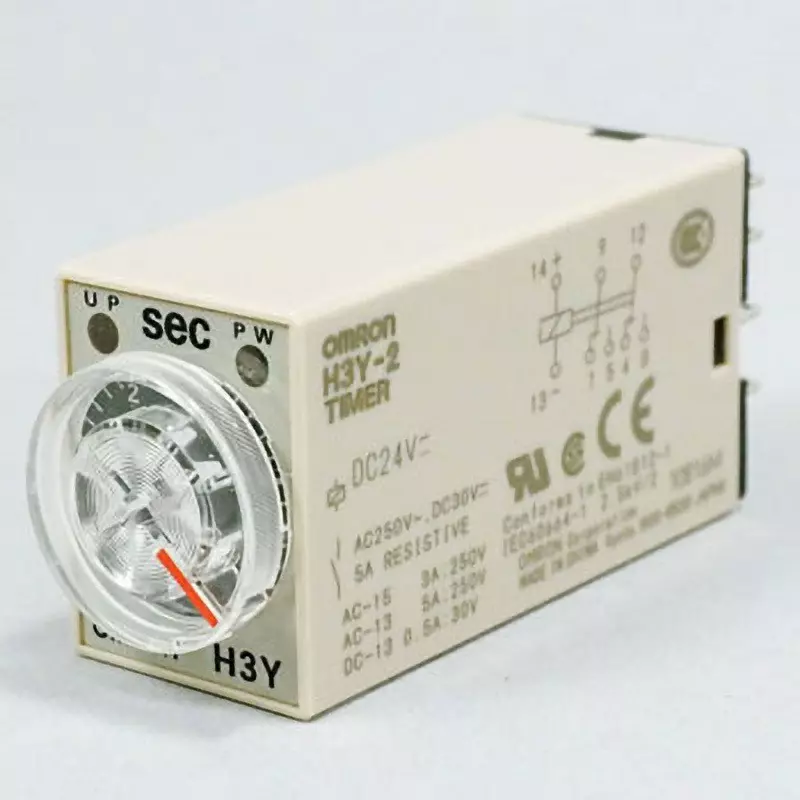

Type of Product |
Solid State Timer |
Model No |
H3Y-2 DC24 5S |
Mass (g) |
About 50 |
Influence of Voltage |
± 2% or less (at maximum scale time) |
Type |
Monofunction timer |
Maximum Setting Time of Graduation |
5s |
Shock Resistance |
1000m/s ² 6 directions 3 times each |
Timed Contacts |
2 Contact |
Monotaro ID |
2490415 |
Adjustable Time |
0.2s to 5s |
Power Supply Voltage |
DC 24 |
Terminal Structure |
Plug-in terminal |
Series |
H3Y |
Import Country |
Direct Import from Japan |
Operating Temperature Range |
-10 to 50℃ |
Terminal Type |
Plug-in terminal |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Outer Dimensions |
21.5 x63x28 mm or less |
Specifications |
Fixed time range |
Insulation Resistance (MOhm) |
100 or more (measured with DC500V mega) |
Manufacturer Part Number |
H3Y-2 DC24 5S |
Operation Ambient Temperature (°C) |
-10 to +50 (no icing) |
