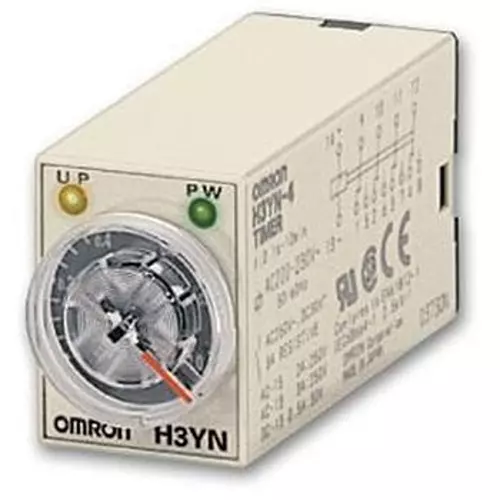

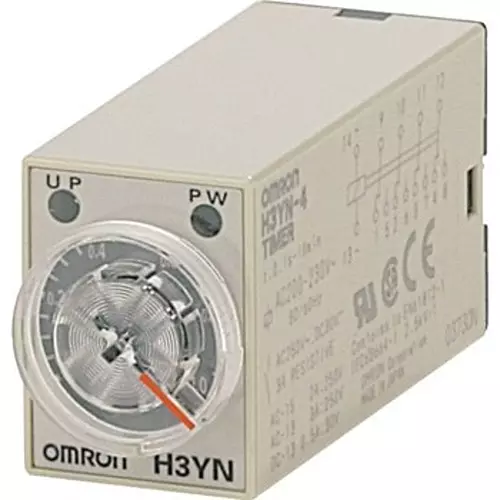

Omron Solid State Timer 100 mohm or more (measured with DC500 V mega), H3YN-41-AC24

Name: Omron Solid State Timer 100 mohm or more (measured with DC500 V mega), H3YN-41-AC24
Brand: Omron
SKU: IND.SOL.236974601
Price: 5781 INR
Availability: InStock

Visit the Omron Store

EMI starts at ₹514/month. No Cost EMI available.

Available offers

Flat ₹300 off on Order above ₹7,000 | Valid for NEW Business Users

View

Flat ₹200 off on Order above ₹5000 | Valid for NEW Business Users

View

Flat ₹400 off on Order above ₹10,000 | Valid for REPEAT Business User

View

Flat ₹800 off on Order above ₹20,000 | Valid for REPEAT Business User

View

Features

Power Consumption	Relay OFF: Approx. 0.3VA (0.2W) Relay ON: Approx. 1.8VA (1.4W) (AC24V 60Hz)
Control Output	AC250V 3A resistive load (cosΦ = 1) <br> Minimum applicable load: DC1V 1mA (P level, reference value)
Protection Class	IP40
Storage Temperature	-25~+65℃ (no freezing)

More Omron Solid State Timers products More Solid State Timers products

Warranty as per brand

100% Original Products

Secure payments

100% Buyer protection

Top Brands

specifications

Power Consumption	Relay OFF: Approx. 0.3VA (0.2W) Relay ON: Approx. 1.8VA (1.4W) (AC24V 60Hz)
Control Output	AC250V 3A resistive load (cosΦ = 1) <br> Minimum applicable load: DC1V 1mA (P level, reference value)
Protection Class	IP40
Storage Temperature	-25~+65℃ (no freezing)
Type of Product	Solid State Timer
Model No	H3YN-41-AC24
Mass (g)	About 50
Influence of Voltage	± 2% or less (at maximum scale time)
Withstand Voltage	AC2000V 50/60Hz 1min (between conductive terminals and exposed non-current metal parts, excluding terminal screws) / AC2000V 50/60Hz 1min (between operation power circuit and control output) / AC2000V 50/60Hz 1min (different polarity contacts) (between 2 pole type)/AC1500V 50/60Hz 1min (between contacts of different poles, 4 pole type)/AC1000V 50/60Hz 1min (between discontinuous contacts)
Type	Multi Timer
Shock Resistance	1000m/s² 6 directions 3 times each
Timed Contacts	4c
Monotaro ID	46624505
Adjustable Time	Long time type 0.1min to 10h (switchable from 4 ranges: 1min, 10min, 1h, 10h)
Power Supply Voltage	AC24 50/60Hz
Ambient Humidity to Use	35 to 85%
Import Country	Direct Import from Japan
Vibration Resistance (Destruction)	10 to 55Hz, single amplitude 0.75 mm, 3 directions, 1h each
Timer Function	Multifunctional
Country of Origin	Japan
Name of Manufacturer/Packer/Importer	Omron Corporation
Outer Dimensions	21.5 or lessx63x28 or less mm
Specifications	4-hour range multi
Insulation Resistance (MOhm)	100 mohm or more (measured with DC500 V mega)
Operation Ambient Temperature (°C)	-10 to +50 (no icing)
Pack of	1 Pcs
