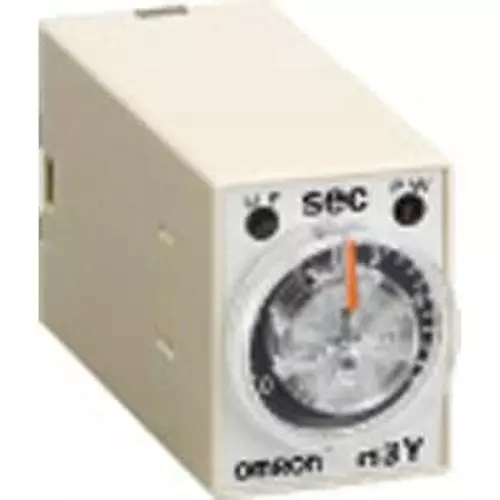

Omron Solid State Timer Fixed Range Plug-in, H3Y-2-B AC200-230 1S

Name: Omron Solid State Timer Fixed Range Plug-in, H3Y-2-B AC200-230 1S
Brand: Omron
SKU: IND.SOL.336940714
Price: 5073 INR
Availability: InStock

Visit the Omron Store

EMI starts at ₹451/month. No Cost EMI available.

Available offers

Flat ₹300 off on Order above ₹7,000 | Valid for NEW Business Users

View

Flat ₹200 off on Order above ₹5000 | Valid for NEW Business Users

View

Flat ₹400 off on Order above ₹10,000 | Valid for REPEAT Business User

View

Flat ₹800 off on Order above ₹20,000 | Valid for REPEAT Business User

View

Features

Power Consumption	1.8 VA (at 230 VAC)
Control Output	AC250 V 5A resisti Ve load (cosΦ = 1), minimum applicable load DC5 V 1mA (P le Vel, reference Value), contact material: Ag
Protection Class	IP40
Storage Temperature	-25~+65℃

More Omron Solid State Timers products More Solid State Timers products

Warranty as per brand

100% Original Products

Secure payments

100% Buyer protection

Top Brands

specifications

Power Consumption	1.8 VA (at 230 VAC)
Control Output	AC250 V 5A resisti Ve load (cosΦ = 1), minimum applicable load DC5 V 1mA (P le Vel, reference Value), contact material: Ag
Protection Class	IP40
Storage Temperature	-25~+65℃
Type of Product	Solid State Timer
Mass (g)	About 50
Influence of Voltage	± 2% or less (at maximum scale time)
Withstand Voltage	AC2000V 50/60Hz 1min (between conductive terminals and exposed non-current metal parts, excluding terminal screws) / AC2000V 50/60Hz 1min (between operation power circuit and control output) / AC2000V 50/60Hz 1min (different polarity contacts) (between 2 pole type)/AC1500V 50/60Hz 1min (between contacts of different poles, 4 pole type)/AC1000V 50/60Hz 1min (between discontinuous contacts)
Type	Monofunction timer
Maximum Setting Time of Graduation	1s
Shock Resistance	1000m/s ² 6 directions 3 times each
Timed Contacts	2 Contact
Monotaro ID	24410557
Adjustable Time	0.1s to 1s
Power Supply Voltage	AC200 to 230
Import Country	Direct Import from Japan
Vibration Resistance (Destruction)	10 to 55Hz, single amplitude 0.75mm, 3 directions, 1h each
Terminal Type	Plug-in terminal
Country of Origin	Japan
Name of Manufacturer/Packer/Importer	Omron Corporation
Outer Dimensions	21.5 x63x28 mm or less
Specifications	Fixed time range
Insulation Resistance (MOhm)	100 or more (measured with DC500V mega)
Manufacturer Part Number	H3Y-2-B AC200-230 1S
Operation Ambient Temperature (°C)	-10~+55 (no freezing)
