| Power Consumption | DC12 V: 0.6 W or less |
| Control Output | Contact Output 1c (Time Limit 1c)/AC250 V 5 A Resistive Load (CosΦ=1), DC30 V 5 A Resistive Load |
| Protection Class | IP30 (Terminal is IP20) |
| Storage Temperature | -40 to +70°C (No Condensation or Freezing) |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Power Consumption |
DC12 V: 0.6 W or less |
Control Output |
Contact Output 1c (Time Limit 1c)/AC250 V 5 A Resistive Load (CosΦ=1), DC30 V 5 A Resistive Load |
Protection Class |
IP30 (Terminal is IP20) |
Storage Temperature |
-40 to +70°C (No Condensation or Freezing) |

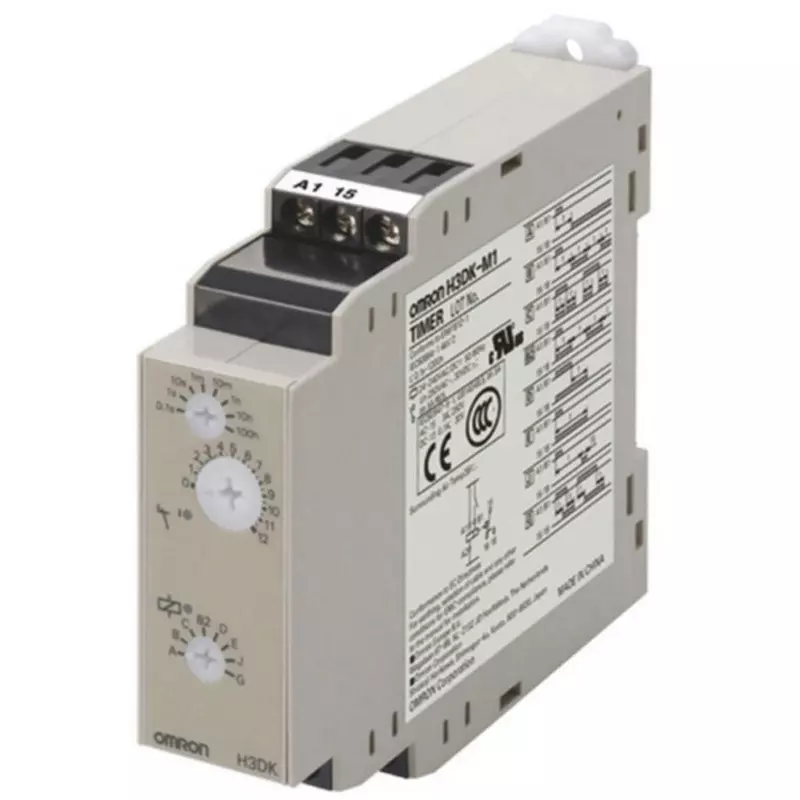

Type of Product |
Solid State Timer |
Model No |
H3DK-M1A DC12 |
Mass (g) |
About 120 g |
Insulation Resistance |
100 mΩ or more (with DC 500 V Mega) |
Withstand Voltage |
AC2000 V/min 50/60 Hz (Between Live Metal Parts and Non-live Metal Parts), AC2000 V/min 50/60 Hz (Between Control Output and Operation Circuit), AC1000 V/min 50/60 Hz (between Non-continuous Contacts) |
Maximum Setting Time of Graduation |
12 |
Monotaro ID |
39072835 |
Adjustable Time |
(Time Range: Set Time Range) 0.1 s: 0.1 to 1.2 s, 1 s: 1 to 12 s, 10 s: 10 s to 120 s, 1 min: 1 to 12 min, 10 min: 10 to 120 min, 1 h: 1 to 12 h, 10 h: 10 to 120 h, 100 h: 100-1200 h |
Type of Sign |
DIN Rail Mounting |
Output Type |
Relay 1c |
Input Method |
Voltage Input |
Input Voltage (V) |
H Level: DC10.8-13.2 V, L level: DC0-1.2 V |
Input Signal |
Start |
Operating Temperature Range |
-20~55°C (No Condensation or Freezing) |
Included Components |
Name Label |
Country of Origin |
INDONESIA |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
