Ships within 19 days
Model No
Maximum Setting Time of Graduation
View
View
View
View
| Power Consumption | 1.3 W (DC110 V) |
| Control Output | AC250 V 5 A Resistive Load (CosΦ = 1), Minimum Applicable Load: DC5 V 1 mA (P Level, Reference Value) |
| Protection Class | IP40 |
| Storage Temperature | -25 to +65°C (But No Condensation or Freezing) |
Power Consumption |
1.3 W (DC110 V) |
Control Output |
AC250 V 5 A Resistive Load (CosΦ = 1), Minimum Applicable Load: DC5 V 1 mA (P Level, Reference Value) |
Protection Class |
IP40 |
Storage Temperature |
-25 to +65°C (But No Condensation or Freezing) |

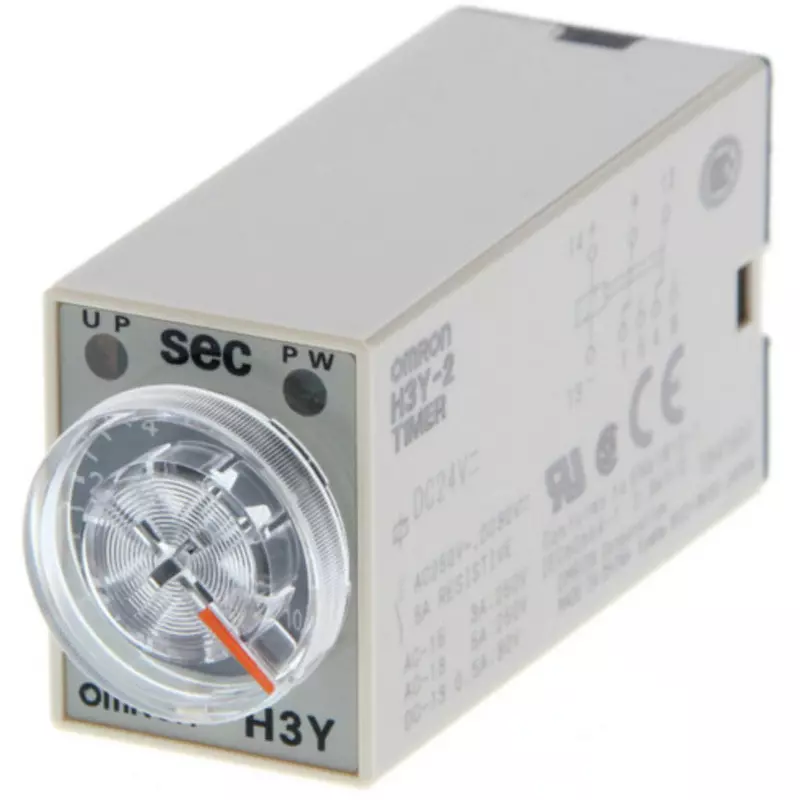

Type of Product |
Solid State Timer |
Model No |
H3Y-2-DC100-110-10M |
Mass (g) |
About 50 g |
Insulation Resistance |
100 mΩ or more (Measured with DC500 V Mega) |
Withstand Voltage |
AC2000 V/min 50/60 Hz (Between Conductive Terminals and Exposed Non-Current Metal Parts, Excluding Terminal Screws), AC2000 V/min 50/60 Hz (Between Operation Power Circuit and Control Output), AC2000 V/min 50/60 Hz (Different Polarity Contacts) (Between 2 Pole Type)/AC1500 V/min 50/60 Hz (Between Contacts Of Different Poles, 4 Pole Type)/AC1000 V/min 50/60 Hz (Between Discontinuous Contacts) |
Maximum Setting Time of Graduation |
10m |
Timed Contacts |
2c |
Monotaro ID |
46623166 |
Adjustable Time |
0.5 min~10 min |
Power Supply Voltage |
DC 100-110 |
Power Consumption (W) |
1.3 W (at DC110 V) |
Series |
H3Y |
Import Country |
Direct Import from Japan |
Operating Temperature Range |
-10~50°C (No Condensation or Freezing) |
Terminal Type |
Plug-in Terminal |
Contact Configuration |
2c Contact |
Country of Origin |
Indonesia |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Outer Dimensions (W x D x H) (mm) |
21.5 or less x 63 x 28 or less |
