| Power Consumption | Relay OFF: Approx. 0.1 W Relay ON: Approx. 1.1 W (at DC 12 V) |
| Control Output | AC250V 3A resistive load (cosΦ = 1) , Minimum applicable load: DC1V 1mA (P level, reference value) |
| Protection Class | Ip40 |
| Storage Temperature | -25 to +65 ℃ (no freezing) |
Power Consumption |
Relay OFF: Approx. 0.1 W Relay ON: Approx. 1.1 W (at DC 12 V) |
Control Output |
AC250V 3A resistive load (cosΦ = 1) , Minimum applicable load: DC1V 1mA (P level, reference value) |
Protection Class |
Ip40 |
Storage Temperature |
-25 to +65 ℃ (no freezing) |

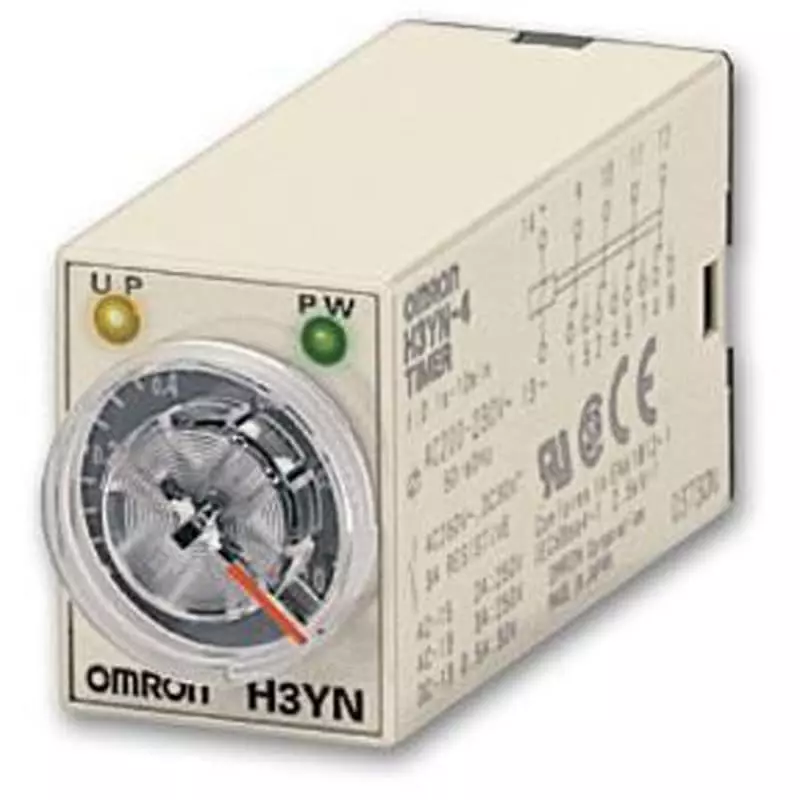

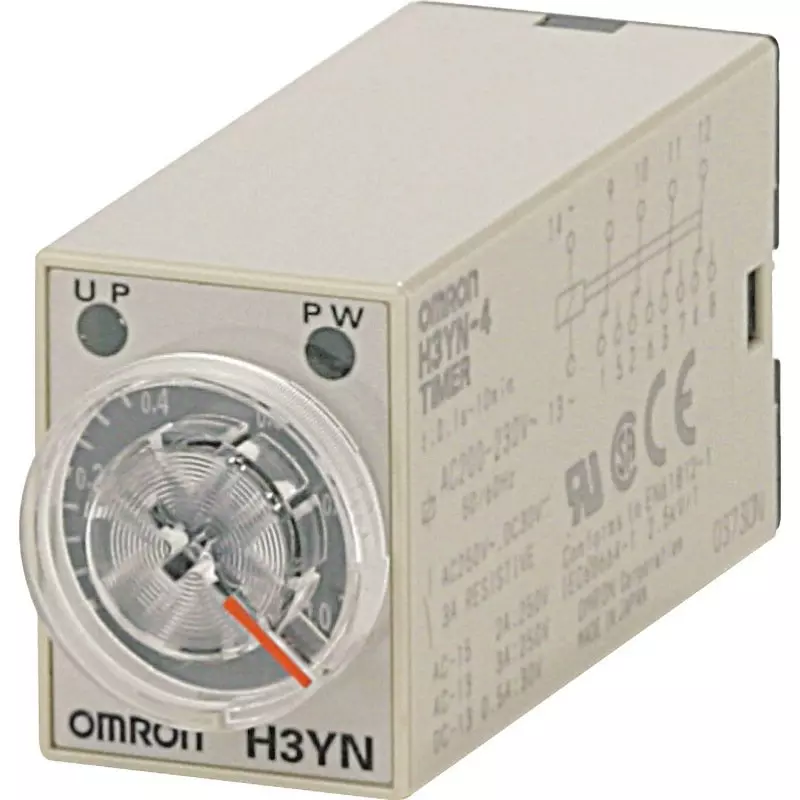

Type of Product |
Solid State Timer |
Model No |
H3YN-41-DC12 |
Mass (g) |
About 50 |
Influence of Voltage |
± 2% or less (at maximum scale time) |
Withstand Voltage |
AC2000V 50/60Hz 1min (between conductive terminals and exposed non-current metal parts, excluding terminal screws) / AC2000V 50/60Hz 1min (between operation power circuit and control output) / AC2000V 50/60Hz 1min (different polarity contacts) (between 2 pole type)/AC1500V 50/60Hz 1min (between contacts of different poles, 4 pole type)/AC1000V 50/60Hz 1min (between discontinuous contacts) |
Type |
Multi Timer |
Shock Resistance |
1000 m/s² 6 directions 3 times each |
Timed Contacts |
4C |
Monotaro ID |
46624523 |
Adjustable Time |
Long time type 0.1 min to 10h (switchable from 4 ranges: 1 min, 10min, 1h, 10h) |
Power Supply Voltage |
DC 12 V |
Series |
H3YN Series |
Import Country |
Direct Import from Japan |
Vibration Resistance (Destruction) |
10 to 55 Hz, single amplitude 0.75 mm, 3 directions, 1h each |
Timer Function |
Multifunctional |
Country of Origin |
Indonesia |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Outer Dimensions |
21.5 or less x 63 x 28 or less mm |
Specifications |
4-hour range multi |
Insulation Resistance (MOhm) |
100 or more (measured with DC500V mega) |
Operation Ambient Temperature (°C) |
-10 to +50 (no icing) |
