| Power Consumption | About 0.35 VA/0.3 W (at AC240V) |
| Control Output | Contact output: AC250 V/DC30 V 5A, resisti Ve load (cosΦ=1), minimum applicable load: DC5 V 10mA (P le Vel, reference Value) |
| Protection Class | IP40 (panel surface) |
| Storage Temperature | -25 to 65℃ |
Power Consumption |
About 0.35 VA/0.3 W (at AC240V) |
Control Output |
Contact output: AC250 V/DC30 V 5A, resisti Ve load (cosΦ=1), minimum applicable load: DC5 V 10mA (P le Vel, reference Value) |
Protection Class |
IP40 (panel surface) |
Storage Temperature |
-25 to 65℃ |

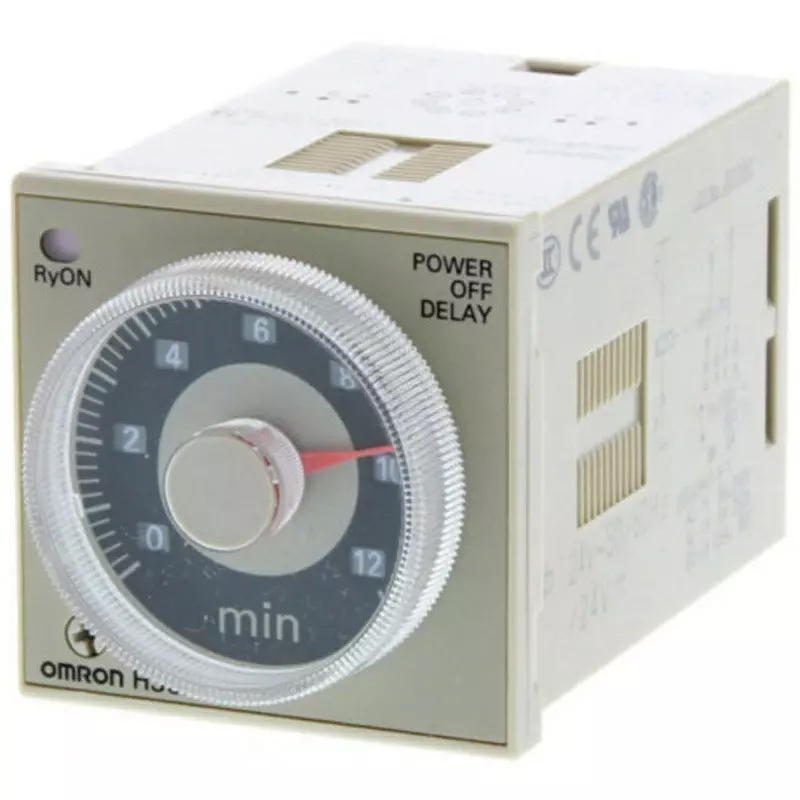

Type of Product |
Solid State Timer |
Mass (g) |
About 120 |
Type |
Power off delay timer |
Monotaro ID |
6862204 |
Adjustable Time |
0.05 to 12min |
Power Supply Voltage |
AC200/220/240 |
Type of Sign |
Recessed mounting / surface mounting |
Pin Type |
8 |
Scale Format |
4-step switching type/0.6, 1.2, 6, 12 |
Series |
M series |
Import Country |
Direct Import from Japan |
Operating Temperature Range |
-10 to 55℃ |
Time Setting |
Scale numbers: (time units) 0.6: 0.05 to 0.6 seconds, 1: 0.12 to 1.2 seconds, 6: 0.6 to 6 seconds, 12: 1.2 to 12 seconds |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Outer Dimensions |
48x93x48 mm |
Insulation Resistance (MOhm) |
100 or more (with DC500V mega) |
Manufacturer Part Number |
H3CR-H8L AC200-240 M |
Rated Power Supply |
AC200/220/240V 50/60 Hz |
