Ships within 19 days
Model No
View
View
View
View
| Dimension (mm) | 48x48 mm |
| Control Output | Contact Output: AC250V/DC30V 5A, DC125V 0.15A, Resistive Load (cosΦ=1), Minimum Applicable Load DC5V 10 mA (P Level, Reference Value) |
| Protection Class | IP40 (Panel Surface) |
| Storage Temperature | -25 to +65°C (But No Condensation or Freezing) |
Dimension (mm) |
48x48 mm |
Control Output |
Contact Output: AC250V/DC30V 5A, DC125V 0.15A, Resistive Load (cosΦ=1), Minimum Applicable Load DC5V 10 mA (P Level, Reference Value) |
Protection Class |
IP40 (Panel Surface) |
Storage Temperature |
-25 to +65°C (But No Condensation or Freezing) |

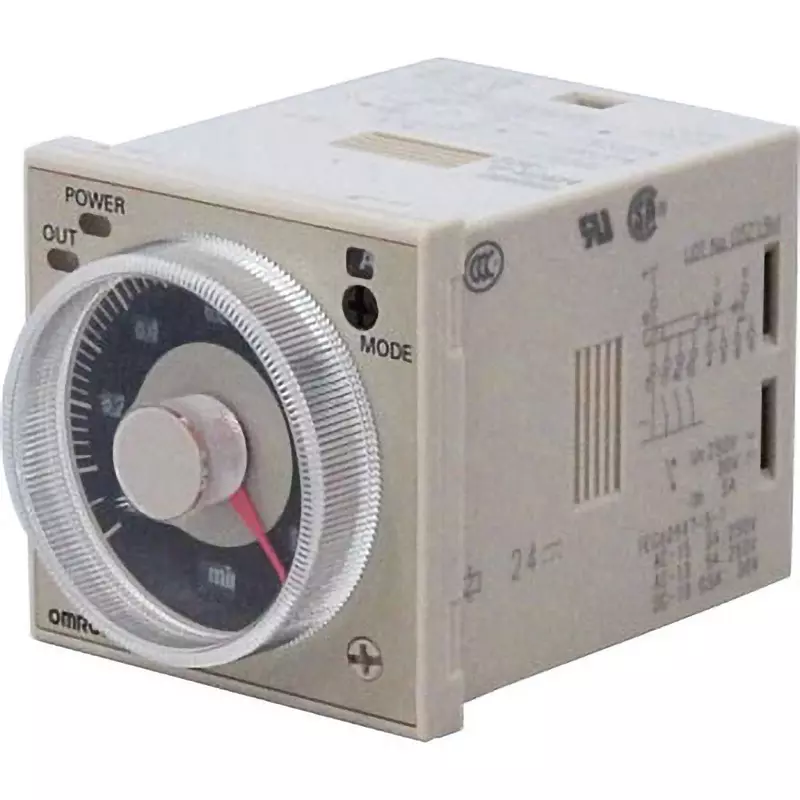

Type of Product |
Solid State Timer |
Model No |
H3CR-A-302 DC24 |
Mass (g) |
About 90 g |
Withstand Voltage |
2000 VAC 50/60 Hz for 1 min (Between Charged Metal Parts and Non-Charged Metal Parts) 2000 VAC 50/60 Hz for 1 min (Between Control Output and Operation Circuit) 2000 VAC 50/60 Hz for 1 min (Between Contacts of Different Polarity) 1000 VAC 50/60 Hz for 1 min (Between Non-Continuous Contacts) ) |
Monotaro ID |
20321726 |
Adjustable Time |
0.05 s~300 h |
Power Supply Voltage |
DC24 |
Output Type |
Relay 2c (Timed) |
Input Method |
No-Voltage Input (NPN Input) |
Series |
H3CR-A Series |
Import Country |
Direct Import from Japan |
Operating Temperature Range |
-10~55°C (No Condensation or Freezing) |
Country of Origin |
China |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
