Ships within 19 days
Model No
Maximum Setting Time of Graduation
View
View
View
View
| Power Consumption | 1.5 VA (AC24 V) |
| Control Output | AC250 V 5 A Resistive Load (CosΦ = 1), Minimum Applicable Load: DC5 V 1 mA (P Level, Reference Value) |
| Protection Class | IP40 |
| Storage Temperature | -25 to +65°C (But No Condensation or Freezing) |
Power Consumption |
1.5 VA (AC24 V) |
Control Output |
AC250 V 5 A Resistive Load (CosΦ = 1), Minimum Applicable Load: DC5 V 1 mA (P Level, Reference Value) |
Protection Class |
IP40 |
Storage Temperature |
-25 to +65°C (But No Condensation or Freezing) |

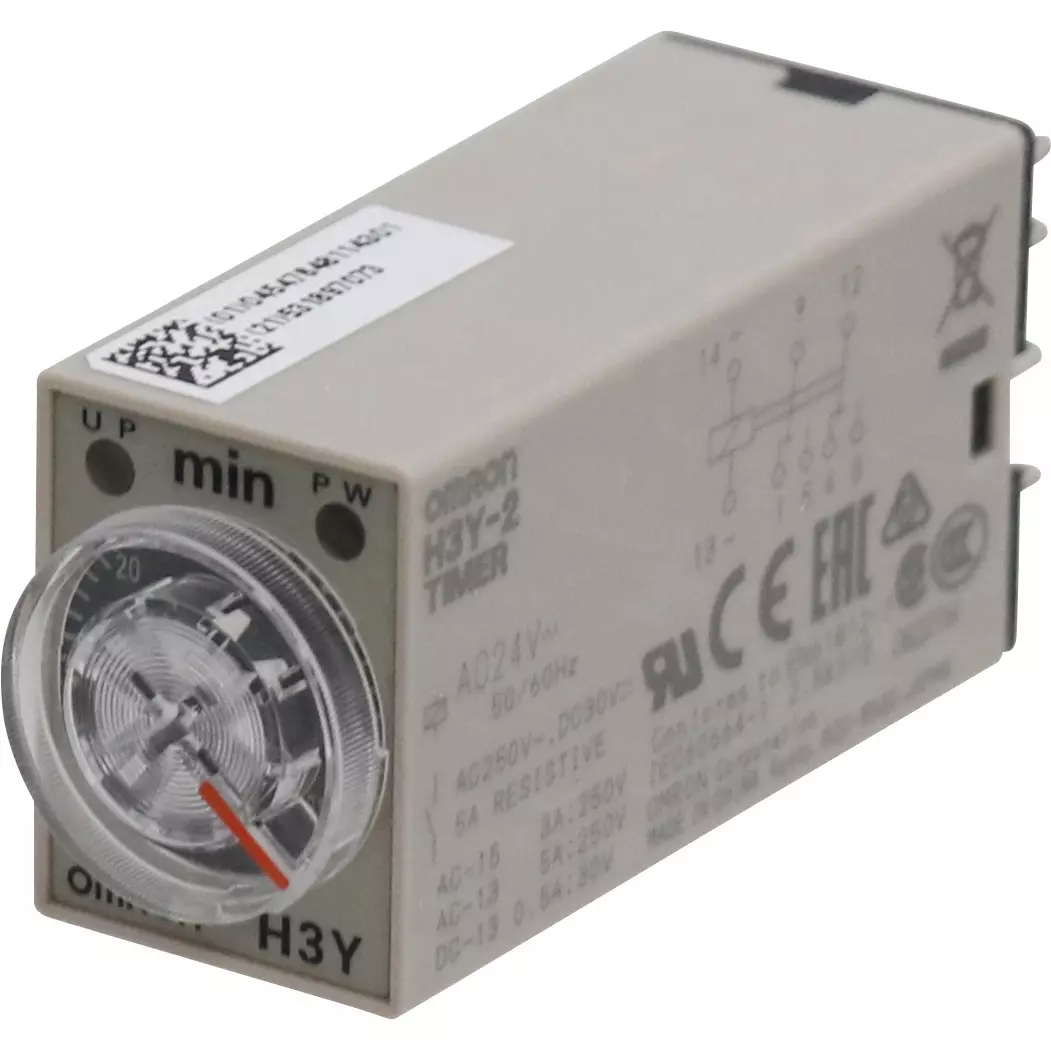

Type of Product |
Solid State Timer |
Model No |
H3Y-2 AC24 60M |
Mass (g) |
About 50 g |
Insulation Resistance |
100 mΩ or more (with DC 500 V Mega) |
Withstand Voltage |
AC2000 V/min 50/60 Hz (Between Conductive Terminals and Exposed Non-Current Metal Parts, Excluding Terminal Screws), AC2000 V/min 50/60 Hz (Between Operation Power Circuit and Control Output), AC2000 V/min 50/60 Hz (Different Polarity Contacts) (Between 2 Pole Type)/AC1500 V/min 50/60 Hz (Between Contacts Of Different Poles, 4 Pole Type)/AC1000 V/min 50/60 Hz (Between Discontinuous Contacts) |
Service Life |
Mechanical Life: Over 1000 (No Load, Switching Frequency 1800 times/h) | Electrical Life: 50 or more (AC250 V 5 A Resistive Load, Switching Frequency 1800 times/h) (at Normal Temperature) |
Maximum Setting Time of Graduation |
60m |
Timed Contacts |
2c |
Monotaro ID |
39073395 |
Adjustable Time |
2 min~60 min |
Operation Type |
Timed Operation |
Power Supply Voltage |
AC24 |
Operation Ambient Temperature |
-10°C to +50°C (No Icing) |
Series |
H3Y-2 Series |
Import Country |
Direct Import from Japan |
Terminal Shape |
Plug-In (Surface Mounting) |
Operating Temperature Range |
-10~50°C (No Condensation or Freezing) |
Terminal Type |
Plug-in Terminal |
Country of Origin |
China |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Outer Dimensions (W x D x H) (mm) |
21.5 or less x 63 x 28 or less |
