Ships within 19 days
Model No
View
View
View
View
| Power Consumption | Relay OFF Approx. 0.4 W Relay ON: Approx. 1.6 W (DC110 V) |
| Control Output | AC250 V 3 A Resistive Load (cosΦ = 1), Minimum Applicable Load: DC1 V 1 mA (P Level, Reference Value) |
| Protection Class | IP40 |
| Storage Temperature | -25 to +65°C (No Freezing) |
Power Consumption |
Relay OFF Approx. 0.4 W Relay ON: Approx. 1.6 W (DC110 V) |
Control Output |
AC250 V 3 A Resistive Load (cosΦ = 1), Minimum Applicable Load: DC1 V 1 mA (P Level, Reference Value) |
Protection Class |
IP40 |
Storage Temperature |
-25 to +65°C (No Freezing) |

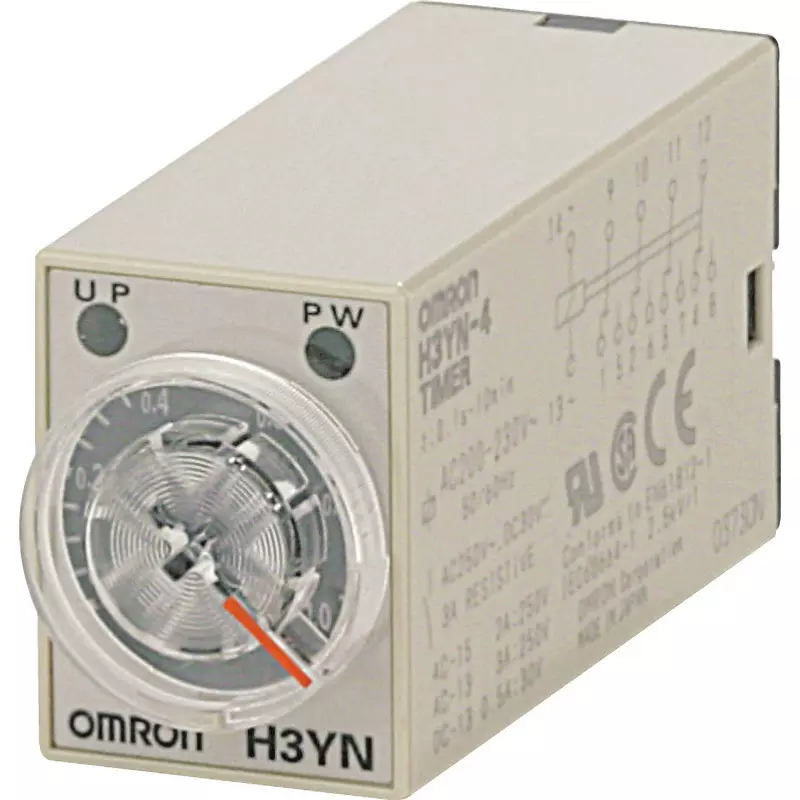

Type of Product |
Solid State Timer |
Model No |
H3YN-41-DC100-110 |
Mass (g) |
About 50 g |
Insulation Resistance |
100 mΩ or more (Measured with DC500 V Mega) |
Withstand Voltage |
AC2000 V/min 50/60 Hz (Between Conductive Terminals and Exposed Non-Current Metal Parts, Excluding Terminal Screws), AC2000 V/min 50/60 Hz (Between Operation Power Circuit and Control Output), AC2000 V/min 50/60 Hz (Different Polarity Contacts) (Between 2 Pole Type)/AC1500 V/min 50/60 Hz (Between Contacts Of Different Poles, 4 Pole Type)/AC1000 V/min 50/60 Hz (Between Discontinuous Contacts) |
Service Life |
Mechanical: 10 million times or more (no load, switching frequency 1800 times / h) <br> Electrical: 500,000 times or more (250 VAC, 5 A, resistive load, switching frequency 1800 times / h) at room temperature |
Timed Contacts |
4c |
Monotaro ID |
46624514 |
Adjustable Time |
Long Time Type 0.1 min to 10 h (Switchable from 4 Ranges: 1 min, 10 min, 1 h, 10 h) |
Power Supply Voltage |
DC 100-110 V |
Operation Ambient Temperature |
-10°C to +50°C (No Icing) |
Power Consumption (W) |
Approx. 0.4 W (When the Relay is OFF), Approx. 1.6 W (When the Relay is ON) (at DC110 V) |
Series |
H3YN Series |
Import Country |
Direct Import from Japan |
Timer Function |
Multifunctional |
Contact Configuration |
4c Contact |
Country of Origin |
Indonesia |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Outer Dimensions (W x D x H) (mm) |
21.5 or less x 63 x 28 or less |
