Ships within 19 days
Model No
Maximum Setting Time of Graduation
View
View
View
View
| Power Consumption | 1.5 VA (at 120 VAC) |
| Control Output | Type: Time-delay relay 4c contact output: Opening and closing capacity (resistance load (cosΦ=1)): AC250 V 3A, Minimum applicable load: DC1 V 1mA (P le Vel, reference Value) |
| Protection Class | IP40 |
| Storage Temperature | -25 to 65℃ |
Power Consumption |
1.5 VA (at 120 VAC) |
Control Output |
Type: Time-delay relay 4c contact output: Opening and closing capacity (resistance load (cosΦ=1)): AC250 V 3A, Minimum applicable load: DC1 V 1mA (P le Vel, reference Value) |
Protection Class |
IP40 |
Storage Temperature |
-25 to 65℃ |

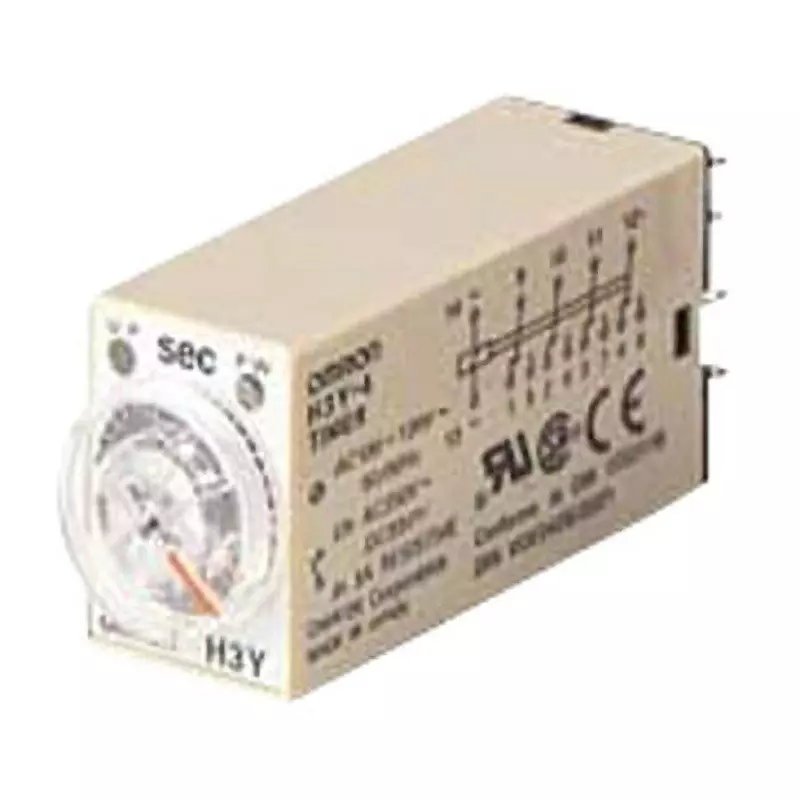

Type of Product |
Solid State Timer |
Model No |
H3Y-4 AC100-120 5S |
Mass (g) |
About 50 |
Influence of Voltage |
± 2% or less (at maximum scale time) |
Type |
Monofunction Timer |
Maximum Setting Time of Graduation |
5s |
Shock Resistance |
1000m/s<sup>2 </sup> |
Timed Contacts |
4 Contact |
Monotaro ID |
2089376 |
Adjustable Time |
0.2s to 5s |
Power Supply Voltage |
AC100-120 |
Terminal Structure |
Plug-in terminal |
Safety Standard |
UL 508, CSA C22.2 No.14, LR certified, CCC: GB/T 14048.5, EN 61812-1, IEC 60664-1 2.5kV/1 compliant |
Series |
H3Y-4 Series |
Import Country |
Direct Import from Japan |
No. Of Pin |
14 |
Operating Temperature Range |
-10 to 50℃ |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Outer Dimensions |
21.5 x63x28 mm or less |
Specifications |
Fixed time range |
Insulation Resistance (MOhm) |
100 or more (with DC500V mega) |
Manufacturer Part Number |
H3Y-4 AC100-120 5S |
