| Power Consumption | Before Time-Up: Approx. 0.1 W, After Time-Up: 1.1 W (at DC24 V) |
| Control Output | Type: Time-Delay Relay 2c, Contact Output: Opening and Closing Capacity (Resistance Load (CosΦ=1)): AC250 V 5 A, Minimum Applicable Load: DC5 V 1 mA (P Level, Reference Value) |
| Protection Class | IP40 |
| Storage Temperature | -25 to +65°C (But No Condensation or Freezing) |
Power Consumption |
Before Time-Up: Approx. 0.1 W, After Time-Up: 1.1 W (at DC24 V) |
Control Output |
Type: Time-Delay Relay 2c, Contact Output: Opening and Closing Capacity (Resistance Load (CosΦ=1)): AC250 V 5 A, Minimum Applicable Load: DC5 V 1 mA (P Level, Reference Value) |
Protection Class |
IP40 |
Storage Temperature |
-25 to +65°C (But No Condensation or Freezing) |
Type of Product |
Solid State Timer |
Model No |

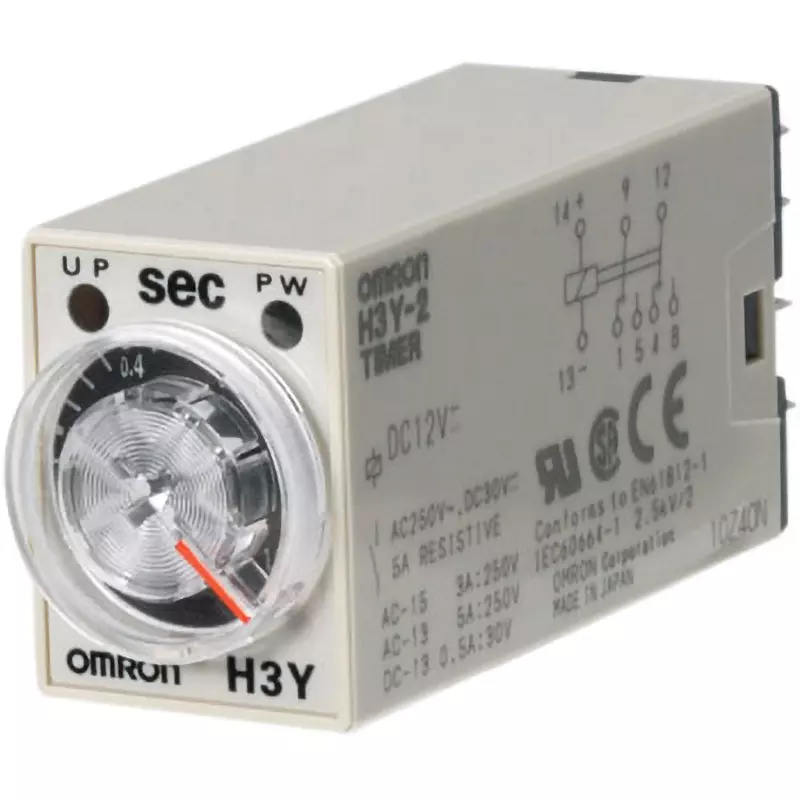

H3Y-2 DC24 1S |
Mass (g) |
About 50 g |
Insulation Resistance |
100 mΩ or more (Measured with DC500 V Mega) |
Withstand Voltage |
Between Conductive Terminals and Exposed Non-current Carrying Metal Parts (Excluding Terminal Screws): AC2000 V/min 50/60 Hz, Between Operation Power Supply Circuit and Control Output: AC2000 V/min 50/60 Hz, Between Contacts of Different Polarities: AC1500 V/min 50/60 Hz, Between Non-Continuous Contacts: AC1000 V/min 50/60 Hz |
Service Life |
Mechanical Life: Over 1000 (No Load, Switching Frequency 1800 times/h) | Electrical Life: 50 or more (AC250 V 5 A Resistive Load, Switching Frequency 1800 times/h) (at Normal Temperature) |
Maximum Setting Time of Graduation |
5m |
Timed Contacts |
2c |
Monotaro ID |
2089342 |
Adjustable Time |
0.1 s~1 s |
Operation Type |
Timed Operation |
Power Supply Voltage |
DC 24 |
Operation Ambient Temperature |
-10°C to +50°C (No Icing) |
Terminal Structure |
Plug-In Terminal |
Series |
H3Y |
Import Country |
Direct Import from Japan |
Terminal Shape |
Plug-In (Surface Mounting) 8 Pin |
Operating Temperature Range |
-10~50°C (No Condensation or Freezing) |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Outer Dimensions (W x D x H) (mm) |
21.5 or less x 63 x 28 or less |
