Ships within 19 days
Model No
Maximum Setting Time of Graduation
View
View
View
View
| Power Consumption | 0.9 W (at 24 VDC) |
| Control Output | AC250 V 3 A Resistive Load (CosΦ=1)/Minimum Applicable Load DC1 V 1 mA (P Level, Reference Value)/Contact Material: Au Clad + Ag Alloy |
| Protection Class | IP40 |
| Storage Temperature | -25 to +65°C (But No Condensation or Freezing) |
Power Consumption |
0.9 W (at 24 VDC) |
Control Output |
AC250 V 3 A Resistive Load (CosΦ=1)/Minimum Applicable Load DC1 V 1 mA (P Level, Reference Value)/Contact Material: Au Clad + Ag Alloy |
Protection Class |
IP40 |
Storage Temperature |
-25 to +65°C (But No Condensation or Freezing) |

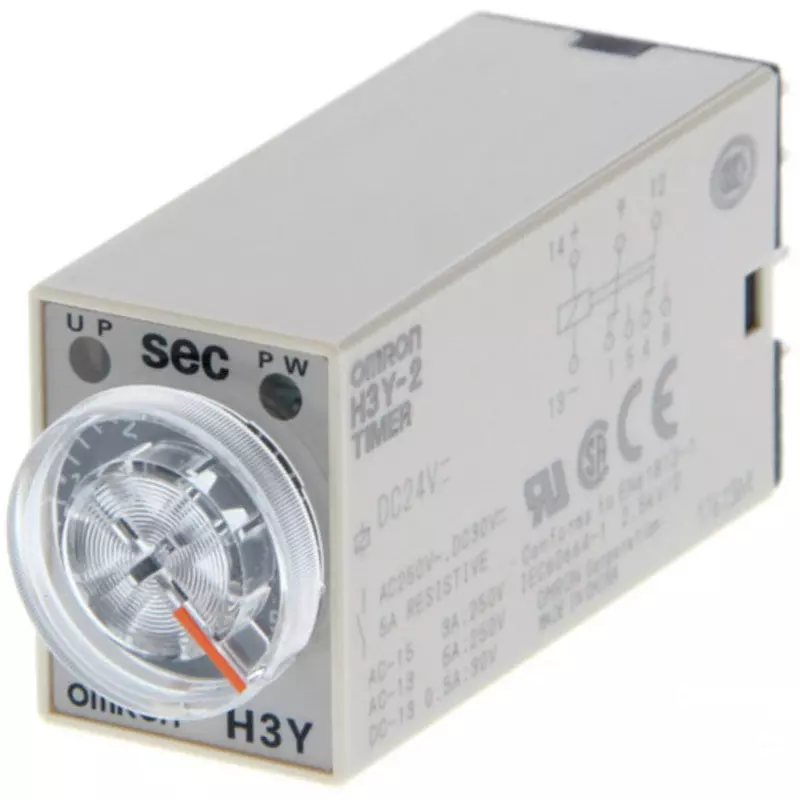

Type of Product |
Solid State Timer |
Model No |
H3Y-4-0-DC24-5S |
Mass (g) |
About 50 g |
Insulation Resistance |
100 mΩ or more (Measured with DC500 V Mega) |
Withstand Voltage |
AC2000 V/min 50/60 Hz (Between Conductive Terminals and Exposed Non-Current Metal Parts, Excluding Terminal Screws), AC2000 V/min 50/60 Hz (Between Operation Power Circuit and Control Output), AC2000 V/min 50/60 Hz (Different Polarity Contacts) (Between 2 Pole Type)/AC1500 V/min 50/60 Hz (Between Contacts Of Different Poles, 4 Pole Type)/AC1000 V/min 50/60 Hz (Between Discontinuous Contacts) |
Maximum Setting Time of Graduation |
5s |
Timed Contacts |
4c |
Monotaro ID |
46623604 |
Adjustable Time |
0.2 s~5 s |
Power Supply Voltage |
DC 24 |
Power Consumption (W) |
0.9 W |
Series |
H3Y |
Import Country |
Direct Import from Japan |
Operating Temperature Range |
-10~50°C (No Condensation or Freezing) |
Terminal Type |
Printed Circuit Board Terminal |
Contact Configuration |
4c Contact |
Country of Origin |
Indonesia |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Outer Dimensions (W x D x H) (mm) |
21.5 or less x 60.7 x 28 or less |
