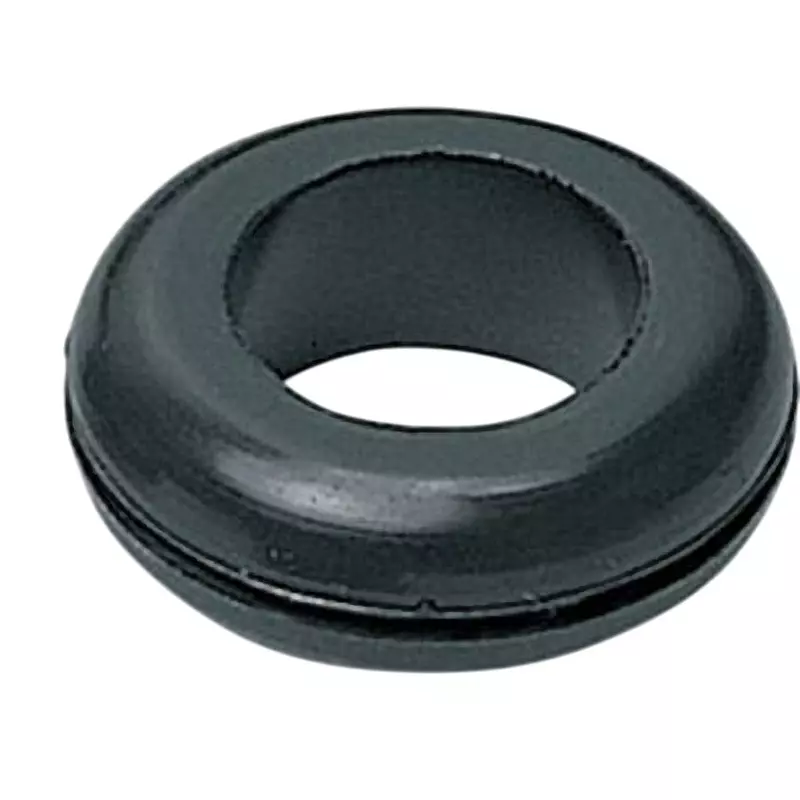

| Type of Product | Flame Retardant Grommet |
| Type | Grommet |
| Color | Black |
| Material | EPDM |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Flame Retardant Grommet |
Type |
Grommet |
Color |
Black |
Material |
EPDM |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Model No |
C-30-BW-45-1.5-EP-UL |
Hardness |
50°±5° |
Weight |
55 g |
Monotaro ID |
61115635 |
Operating Temperature Range |
Up to 70°C |
Features |
Flame Retardance |
TAKIGEN Code |
24197 |
Operation Ambient Temperature |
Up to 70 |

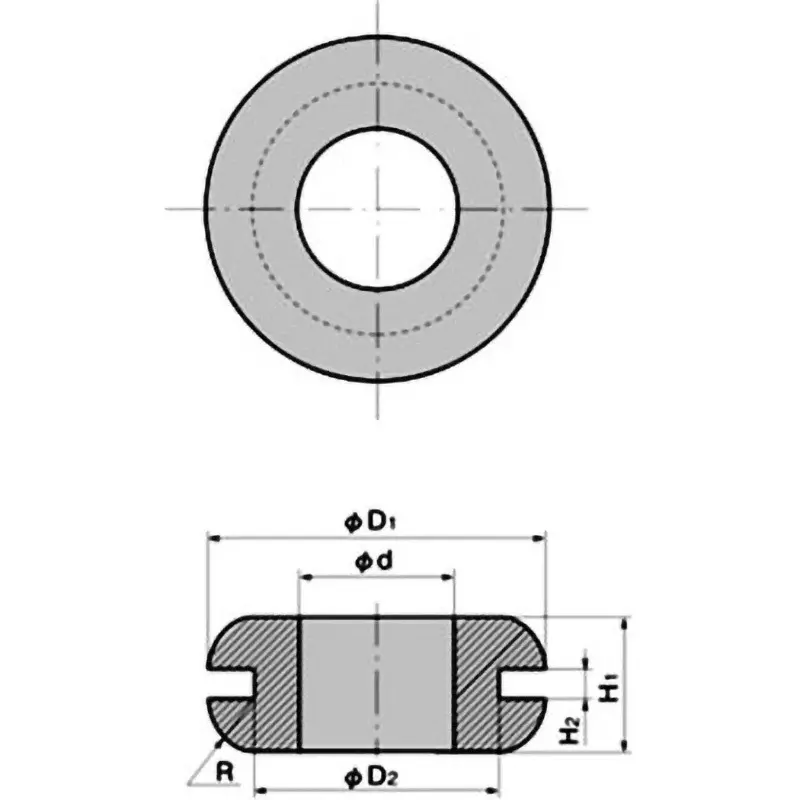

Inner Diameter (mm) |
45 |
Dimension d2 (Φmm) |
55 |
Dimension d1 (Φmm) |
75 |
Dimensions R (mm) |
7 |
Dimensions H1 (mm) |
15.5 |
Dimensions H2 (mm) |
1.5 |
