| Type of Product | Flame Retardant Level Adjuster |
| Color | Bottom: Black |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | TAKIGEN MFG CO., LTD |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Flame Retardant Level Adjuster |
Color |
Bottom: Black |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Model No |
KC-280-5-EP-UL |
Hardness |
80°±5° |
Weight |
65 g |
Monotaro ID |
61128506 |
Surface Finish Type |
Shaft Cover: Zinc Plated Black Chromate Treatment (MFZn-C) |
TAKIGEN Code |
31631 |

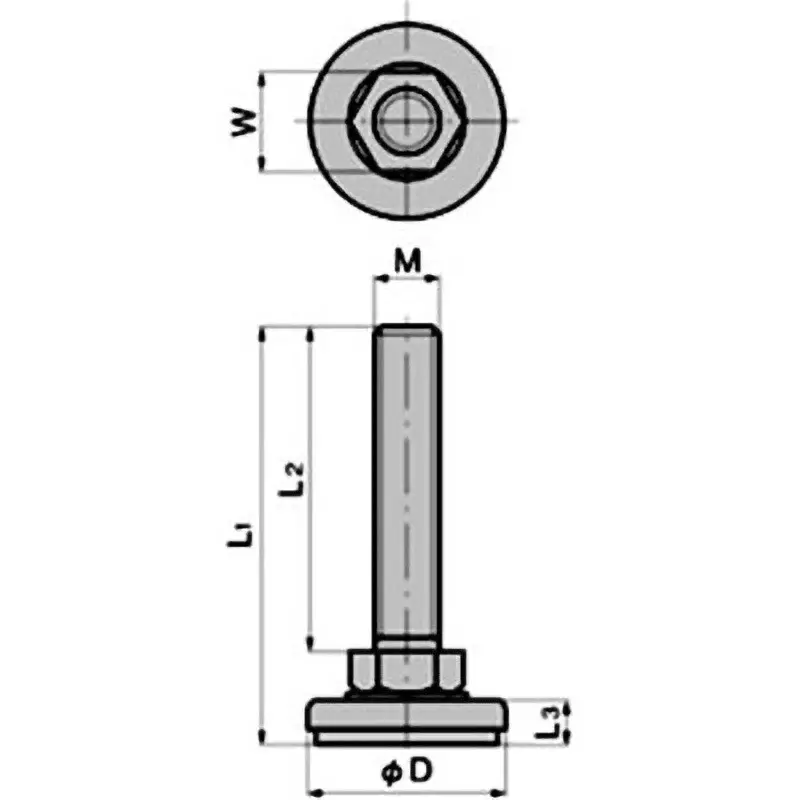

Dimensions w (mm) |
13 |
Working Load |
(Vertical) 2.94 kN |
Dimensions l2 (mm) |
60 |
Dimensions L1 (mm) |
78.5 |
Bottom Material |
Ethylene Propylene Rubber (EPDM) |
Cover Material |
Steel Plate Cold Commercial (SPCC) |
Shaft Material |
Carbon Steel Wire for Cold Heading (SWCH) |
Dimension L3 (mm) |
12 |
Dimension D (Φmm) |
40 |
Screw Diameter x Threads (mm) |
M8x1.25 |
