| Type of Product | Level Adjuster |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | TAKIGEN MFG CO., LTD |
| Model No | KC-275-B-2 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Level Adjuster |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Model No |
KC-275-B-2 |
Included Components |
Hex Nut (One Type) |
Weight |
640 g |
Monotaro ID |
61128262 |
Surface Finish Type |
Zinc Plating Chromate Treatment (MFZn-C) |
TAKIGEN Code |
20639 |

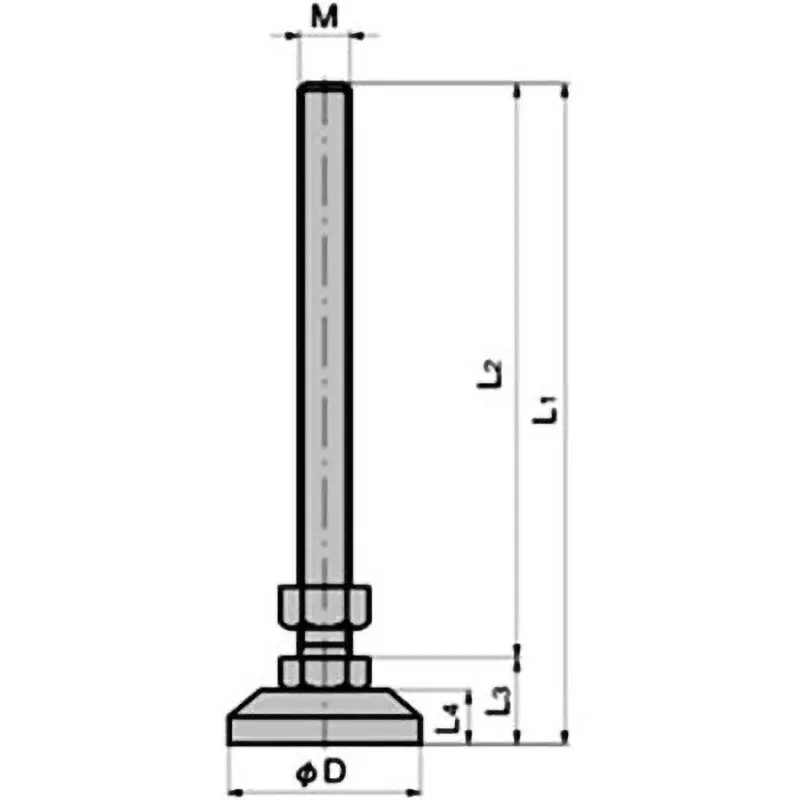

Dimensions w (mm) |
30 |
Working Load |
39.2 kN (Vertical) |
Dimension M |
M20x2.5 |
Dimensions l2 (mm) |
130 |
Dimensions L1 (mm) |
159 |
Bottom Material |
Rolled Steel for General Structure (SS400) |
Shaft Material |
Carbon Steel Wire for Cold Heading (SWCH) |
Dimensions l4 (mm) |
17 |
Dimension L3 (mm) |
29 |
Applicable Bracket |
KC-1275-C-1 |
Dimension D (Φmm) |
60 |
