| Type of Product | Level Adjuster |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | TAKIGEN MFG CO., LTD |
| Model No | KC-275-A-4 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Level Adjuster |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Model No |
KC-275-A-4 |
Weight |
185 g |
Monotaro ID |
61128208 |
Surface Finish Type |
Zinc Plating Chromate Treatment (MFZn-C) |
TAKIGEN Code |
20637 |
Working Load |
(Vertical) 4.9 kN |

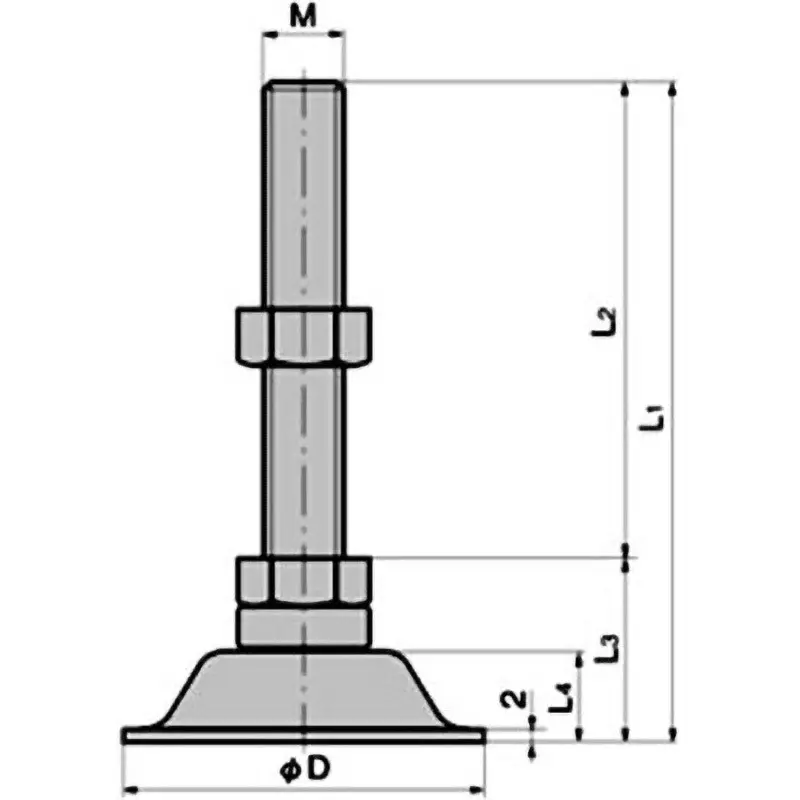

Dimension M |
M12x1.75 |
Dimensions l2 (mm) |
120 |
Dimensions L1 (mm) |
143 |
Bottom Material |
Hot Rolled Steel Plate (SPHC) |
Shaft Material |
Carbon Steel Wire for Cold Heading (SWCH) |
Dimensions l4 (mm) |
15 |
Dimension L3 (mm) |
23 |
Applicable Bracket |
KC-1275-C-3 |
Dimension D (Φmm) |
55 |
