| Type of Product | Level Adjuster |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | TAKIGEN MFG CO., LTD |
| Model No | KC-1275-B-13 |
Type of Product |
Level Adjuster |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Model No |
KC-1275-B-13 |
Included Components |
Hex Nut (One Type) |
Weight |
2.95 Kg |
Monotaro ID |
61129793 |
Surface Finish Type |
Barrel Polishing |
TAKIGEN Code |
21746 |

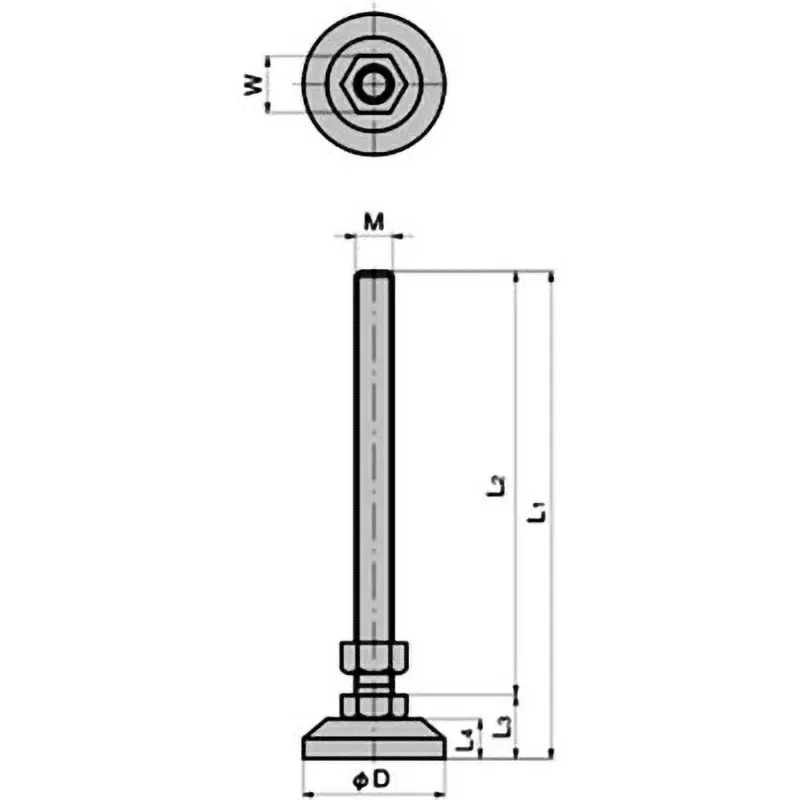

Dimensions w (mm) |
46 |
Working Load |
68.6 kN (Vertical) |
Dimension M |
M30x3.5 |
Dimensions l2 (mm) |
200 |
Dimensions L1 (mm) |
255.5 |
Bottom Material |
Stainless Steel (SUS304) |
Shaft Material |
Stainless Steel Bar (SUS304) |
Dimensions l4 (mm) |
36.5 |
Dimension L3 (mm) |
55.5 |
Applicable Bracket |
KC-1275-C-13 |
Dimension D (Φmm) |
100 |
Import Country |
Direct Import from Japan |
