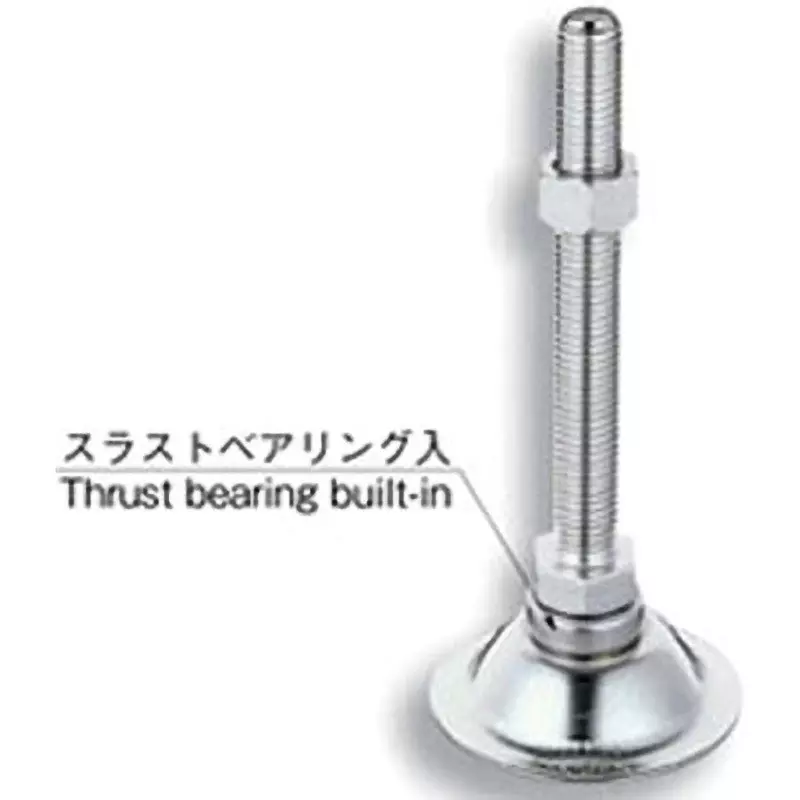

| Type of Product | Level Adjuster |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | TAKIGEN MFG CO., LTD |
| Model No | KC-1275-A-12(old number KC-1275-AB-2) |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Level Adjuster |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Model No |
KC-1275-A-12(old number KC-1275-AB-2) |
Weight |
383 g |
Monotaro ID |
61129678 |
TAKIGEN Code |
22214 |
Working Load |
(Vertical) 4.9 kN |

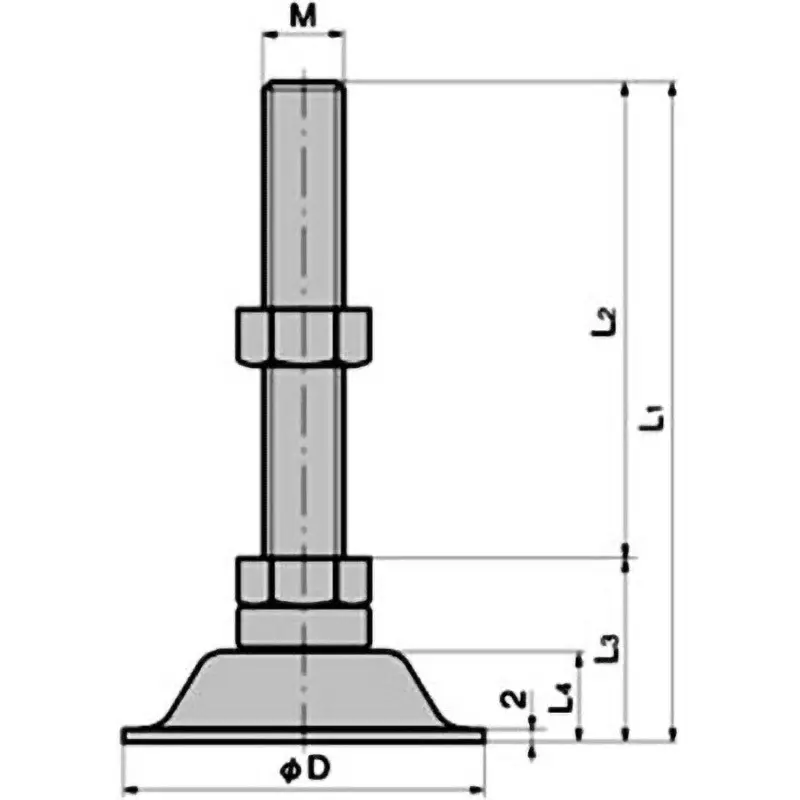

Dimension M |
M16x2 |
Dimensions l2 (mm) |
130 |
Dimensions L1 (mm) |
167 |
Bottom Material |
Cold Rolled Stainless Steel Sheet (SUS304) |
Shaft Material |
Stainless Steel Bar (SUS304) |
Dimensions l4 (mm) |
18 |
Dimension L3 (mm) |
37 |
Applicable Bracket |
KC-1275-C-6 |
Dimension D (Φmm) |
75 |
