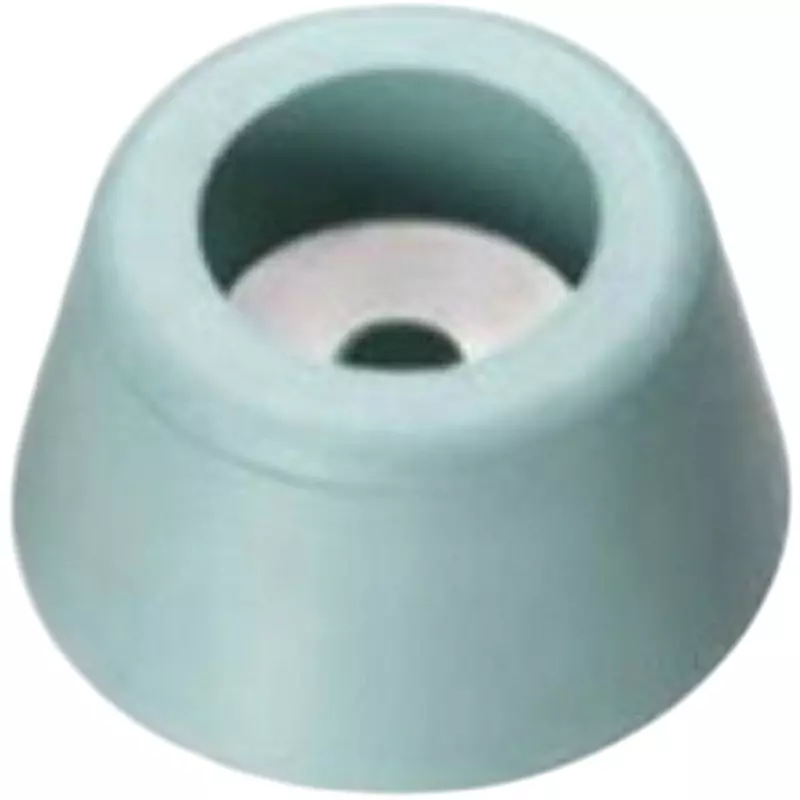

| Type of Product | Flame-Retardant Rubber Foot |
| Type | Rubber Foot |
| Color | Green Gray (7.5BG7 / 2 Equivalent Color) |
| Material | EPDM |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Flame-Retardant Rubber Foot |
Type |
Rubber Foot |
Color |
Green Gray (7.5BG7 / 2 Equivalent Color) |
Material |
EPDM |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Model No |
C-30-RK-63-EP-UL-Green-Gray |
Hardness |
70°±5° |
Weight |
103 g |
Monotaro ID |
54341219 |
Features |
Flame Retardance |
TAKIGEN Code |
24101 |
Operation Ambient Temperature |
70 or less |
Inner Diameter (mm) |
14 |
Dimension d2 (Φmm) |
48 |
Dimension d1 (Φmm) |
63 |
Dimensions H1 (mm) |
26 |
Dimensions H2 (mm) |
15 |
Load capacity (N) |
Deflection / 0.5 mm: 522, 1 mm: 948N |
Main Unit Material |
Ethylene / Propylene Rubber (EPDM) |
Reference Tightening Torque (cNm) |
120 |
Operating Temperature |
(Around) 70°C or less |
